Overview of Fuses

Fuses

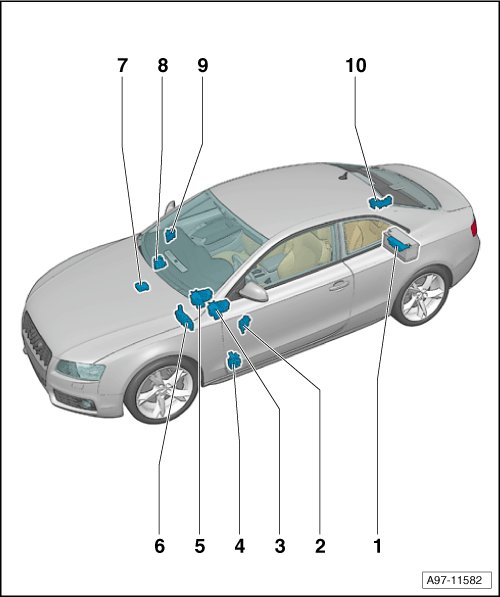

Overview of Fuses



Note:
• Overview be valid also for Sportback (5-door models)!






1 - Fuse Panel A -SA-
• Component Location: => [ ]

2 - Fuse Panel C -SC-
• Component Location for models with left-hand drive, including through model year 2009 => [ through model year 2009 ]
• Component Location for models with right-hand drive, including through model year 2009 => [ ]
• Component Location for models with left-hand drive, from model year 2010 => [ from model year 2010 ]
• Component Location for models with right-hand drive, from model year 2010 => [ ]
• Component Location for models with left-hand drive, from August 2011: => [ from August 2011 ]
• Component Location for models with right-hand drive, from August 2011: => [ ]

3 - Relay / fuse panel with Vehicle Electrical System Control Module -J519-
• Component Location for models with left-hand drive => [ Relay / fuse panel with ]
• Component Location for models with right-hand drive => [ ]

4 - 6-Pin connector station A-pillar, driver's side
• Component Location for models with left-hand drive => [ 6-Pin connector station A-pillar, driver's side ]
• Component Location for models with right-hand drive => [ ]

5 - 3-Pin relay / fuse panel
• Component Location for models with left-hand drive => [ 3-Pin relay / fuse panel ]
• Component Location for models with right-hand drive => [ ]

6 - Relay /fuse panel B -SB-
• Component Location for models with left-hand drive, through July 2011: => [ Relay / through July 2011 ]
• Component Location for models with right-hand drive, through July 2011: => [ ]
• Component Location for models with left-hand drive, from August 2011: => [ Relay / from August 2011 ]
• Component Location for models with right-hand drive, from August 2011: => [ ]






7 - Terminal 30 Wire Junction 2 -TV22- With Battery Jump Start Terminal -U6-
• Component Location for models through July 2011: => [ With through July 2011 ]
• Component Location for models from August 2011: => [ With from August 2011 ]

8 - 6-Pin connector station A-pillar, front passenger's side
• Component Location for models with left-hand drive => [ 6-Pin connector station A-pillar, front passenger's side ]
• Component Location for models with right-hand drive => [ ]

9 - Fuse panel D -SD-
• Component Location for models with left-hand drive => [ ]
• Component Location for models with right-hand drive => [ ]

10 - Relay /Fuse Panel F -SF-
• Component Location for models including through model year 2009: => [ Relay / through model year 2009 ]
• Component Location for models from model year 2010: => [ Relay / from model year 2010 ]
• Component Location for models from August 2011: => [ Relay / from August 2011 ]
