Instruments - Cruise Control Sporadically Inop., Set Button Jam
27 Cruise control sporadically does not work, set button jams27 13 17
2033524/1
April 5, 2013

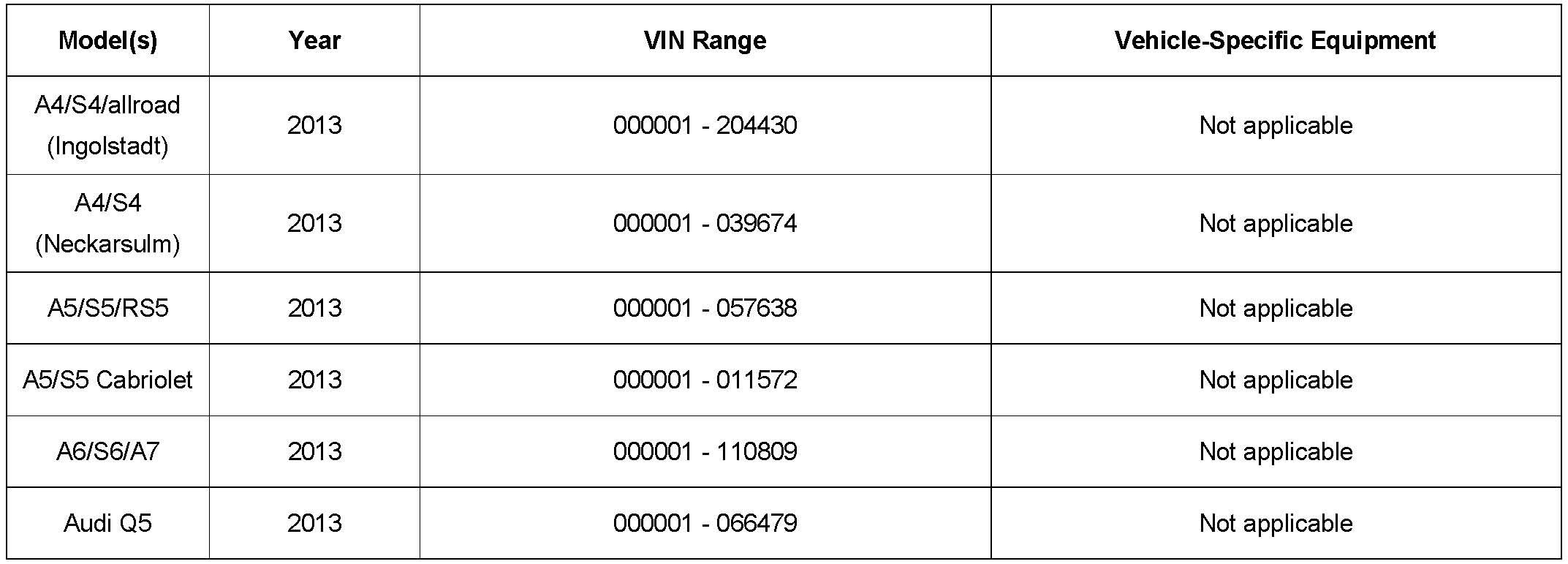

Vehicle Information
Condition
Customer Complaint:
^ Cruise control deactivates sporadically or cannot be activated.
^ A new set speed cannot be saved.
^ 'Set' button on cruise control stalk does not work.
Workshop Findings:
One of the following DTCs is present in the vehicle:
^ DTC U111300 (Restricted function because of received error value) stored in engine control module, J623 (address word 01).
^ DTC P056800 (cruise control switch E45, implausible signal) stored in engine control module, J623 (address word 01).
^ DTC B115407 (CCS Switch mechanical malfunction) stored in steering column electronics control module J527 (address word 16).
Technical Background
Incorrect tolerances of cruise control 'Set' button.
Production Solution
Revised tolerances of cruise control 'Set' button.
Service
Replace the steering column multi-switch

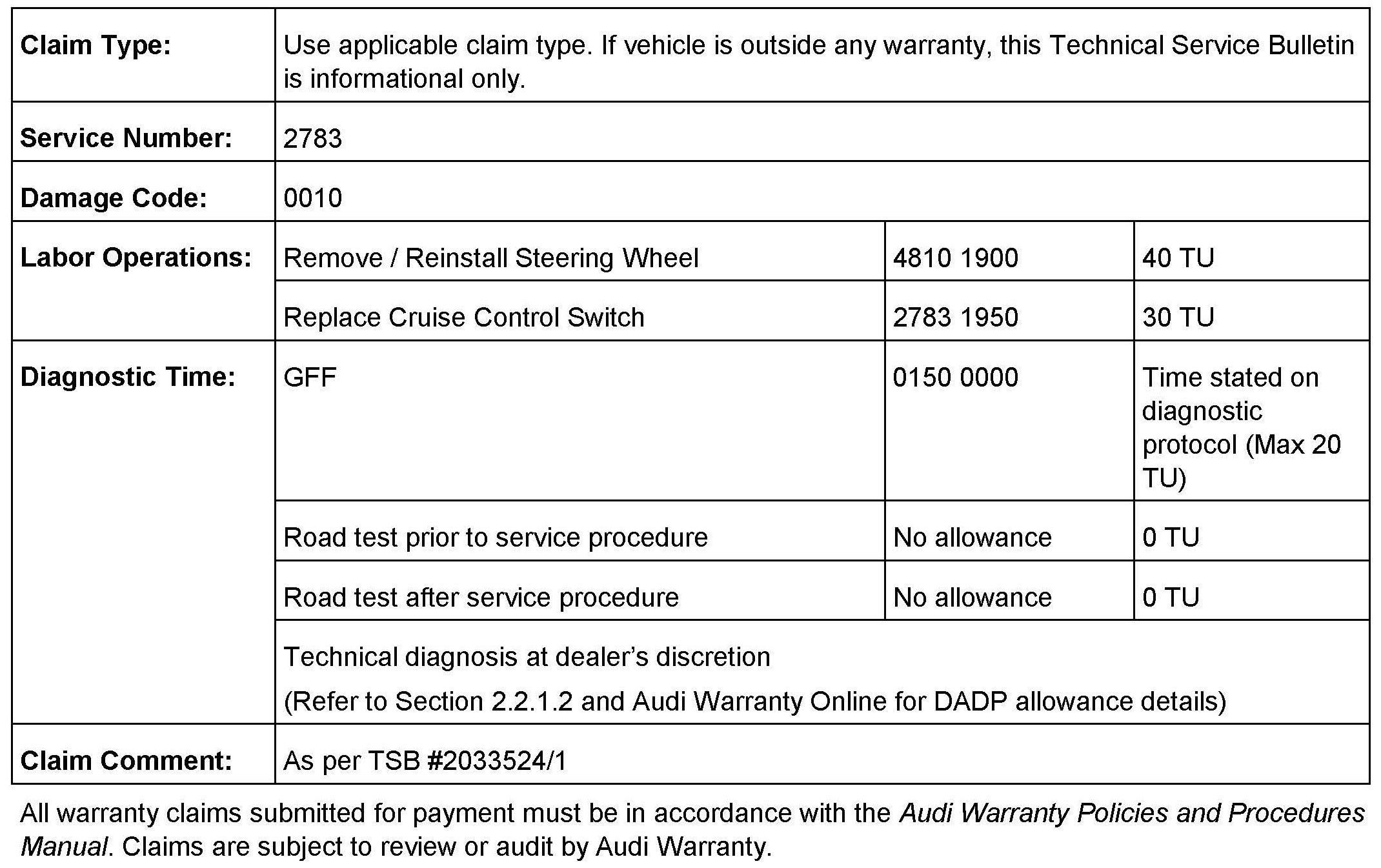

Warranty

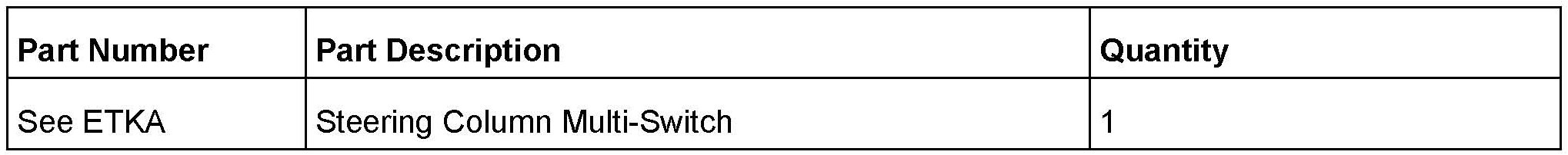

Required Parts and Tools
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
