Lighting - Water Accumulation in Xenon Headlights
94 Water accumulation in Xenon headlights94 13 14
2033536/1
April 5, 2013.

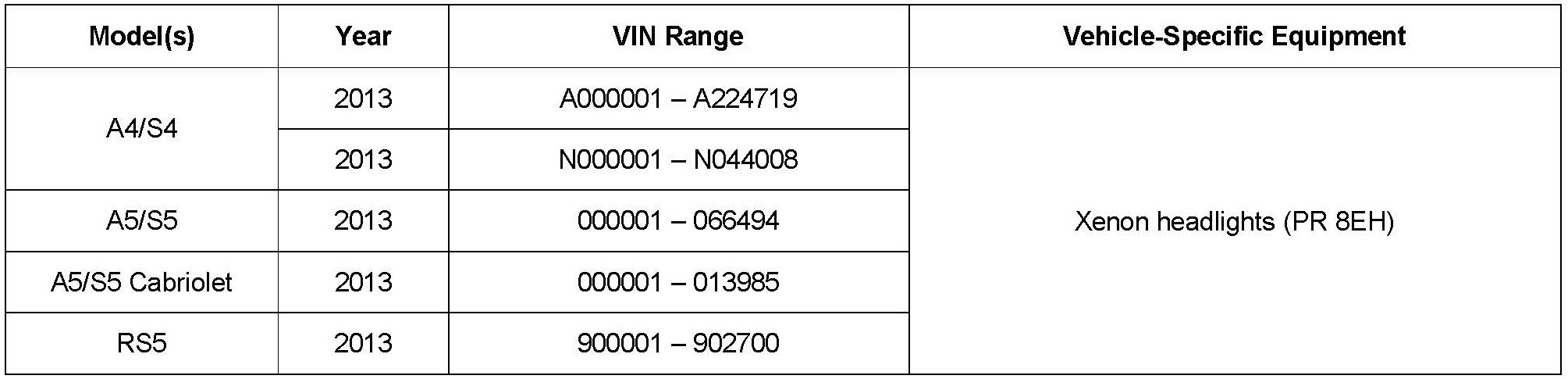

Vehicle Information
Condition

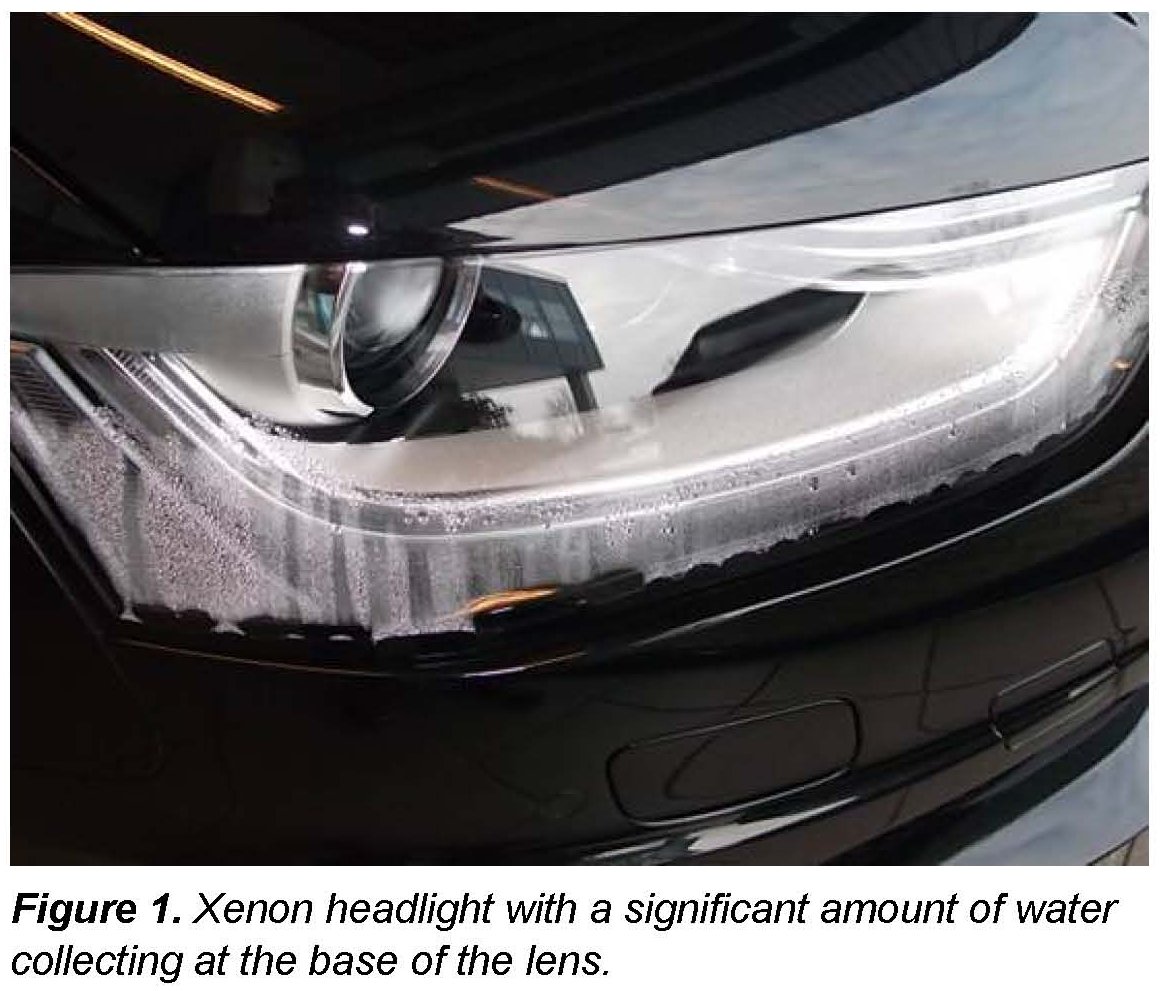

A significant amount of water is collecting at the base of the Xenon headlight lens (Figure 1).
No outside influence, such as rock chips, can be found. The headlights function normally.
Tip:
If the customer complaint is only about condensation buildup on the fog lamp (not about water collecting as described above), refer to TSB 2012749, 94 Exterior lights, moisture accumulation.
Technical Background
Under certain circumstances, water can enter through the headlight adjustment screw (A4), or through the bonding channel between the headlight housing and lens (A5).
Production Solution
Improved headlight assembly processes.
Service
Replace the affected headlight(s) only if a visible amount of water can be seen collecting at the base of the headlight lens(es). Refer to ELSAWeb: Repair Manual >> Electrical System >> Electrical Equipment >> 94 Exterior Lights, Switches >> Removal and Installation >> HID Headlamp, from MY 2012 >> Headlamp Housing.
Adjust headlights after installing them back in to the vehicle. Refer to ELSAWeb: Repair Manual >> Electrical System >> Electrical Equipment >> 94 Exterior Lights, Switches >> Diagnosis and Testing >> HID Headlamp, Adjusting.

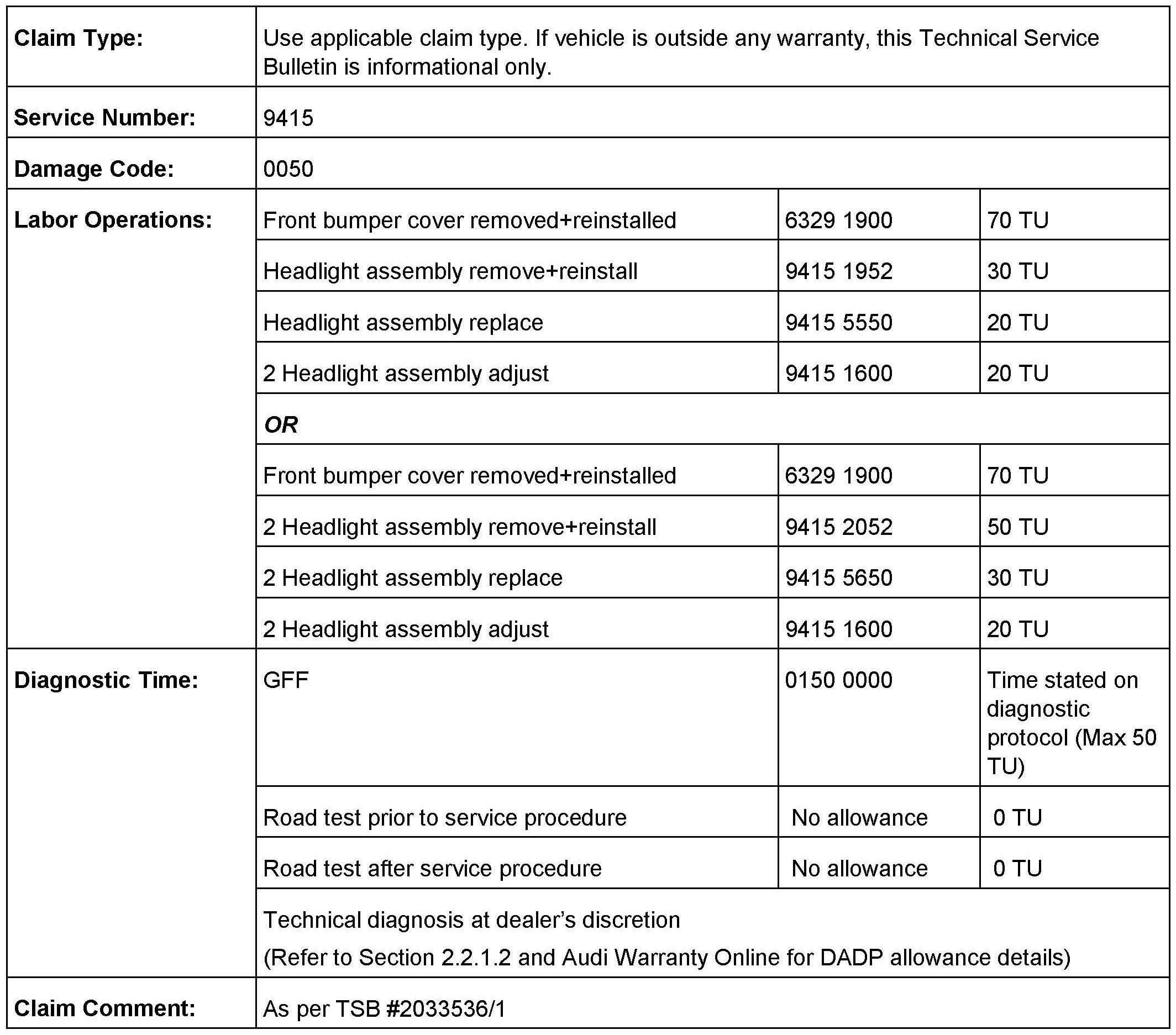

Warranty
Additional Information
The following Technical Service Bulletin(s) will be necessary to complete this procedure:
^ TSB 2012749: 94 Exterior lights, moisture accumulation.
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
