Cleaning and Lubrication of the Lid Mechanism Front and Rear Lids

Cleaning and Lubrication of the Lid Mechanism of the Front and Rear Lids:

1. Move both the front and rear sunroof panels to the vent position. Remove the old lubricant, grit and debris using a lint-free cloth.

Tip: Cover the interior of the vehicle to protect against falling debris.

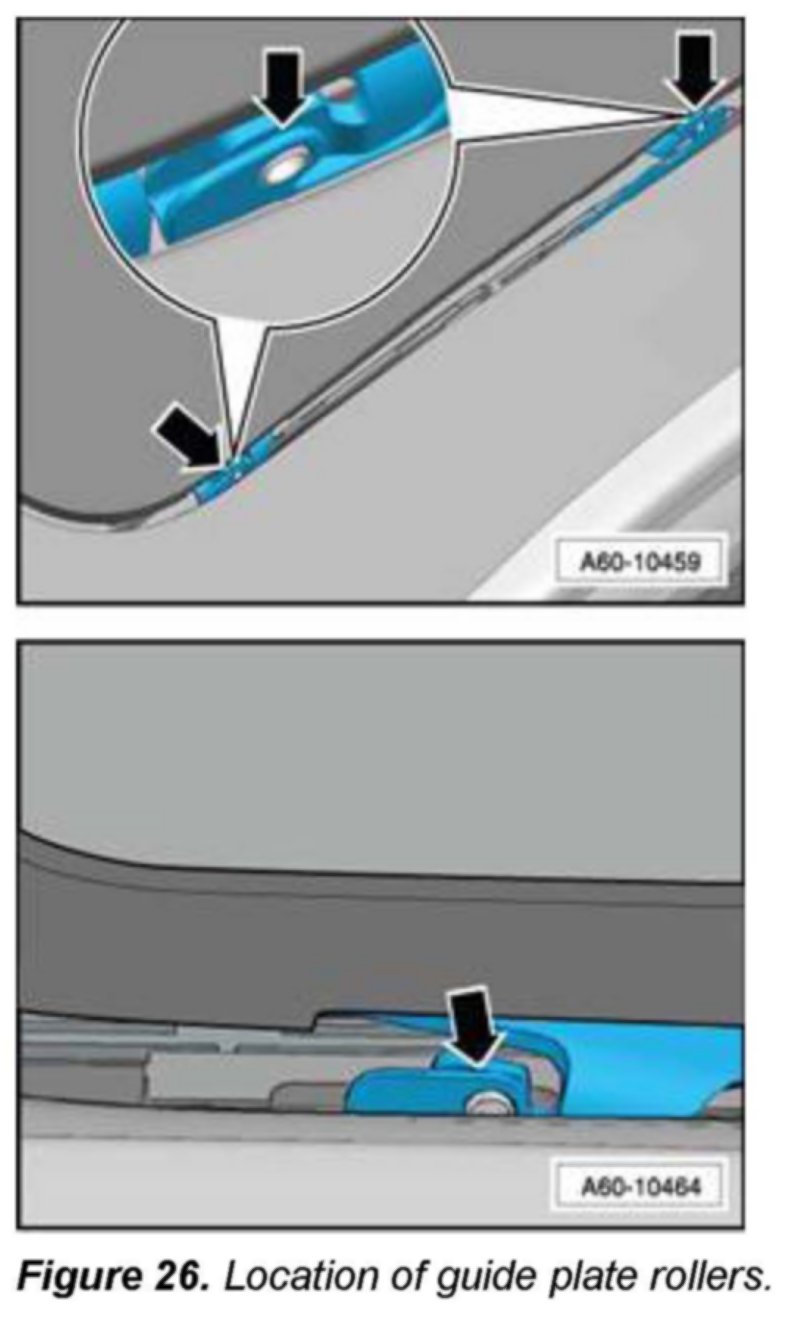

2. Spray lubricating paste G 060 751 A3 on the mechanism for the front and rear sunroof panels at the areas indicated by the arrows in the illustration.

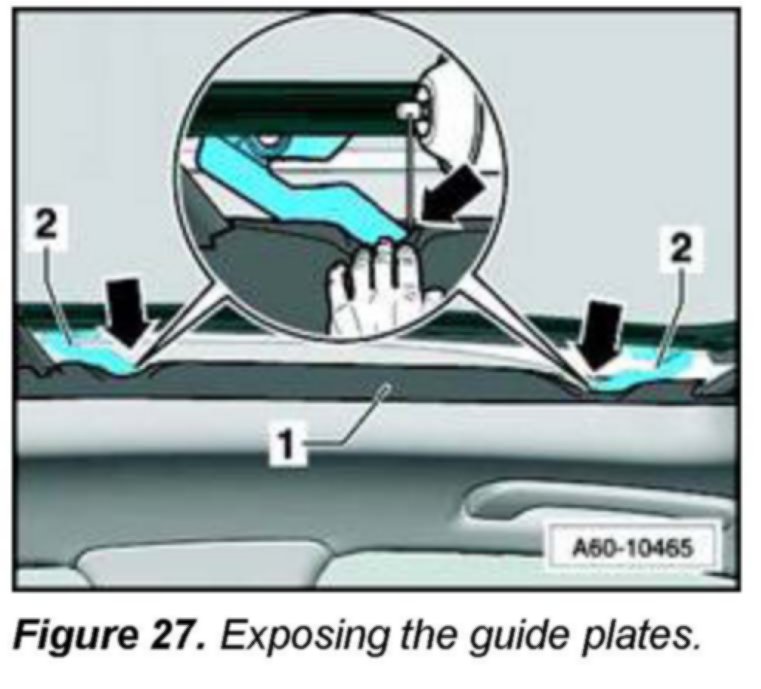

3. Clean and lubricate the guide plates of the front and rear sunroof panels. It will be necessary to press down on the lip of the rubber seal to expose the guide plates. Lubricate the guide plates with G 060 751 A3. Make sure the lubricant fully penetrates the rollers.

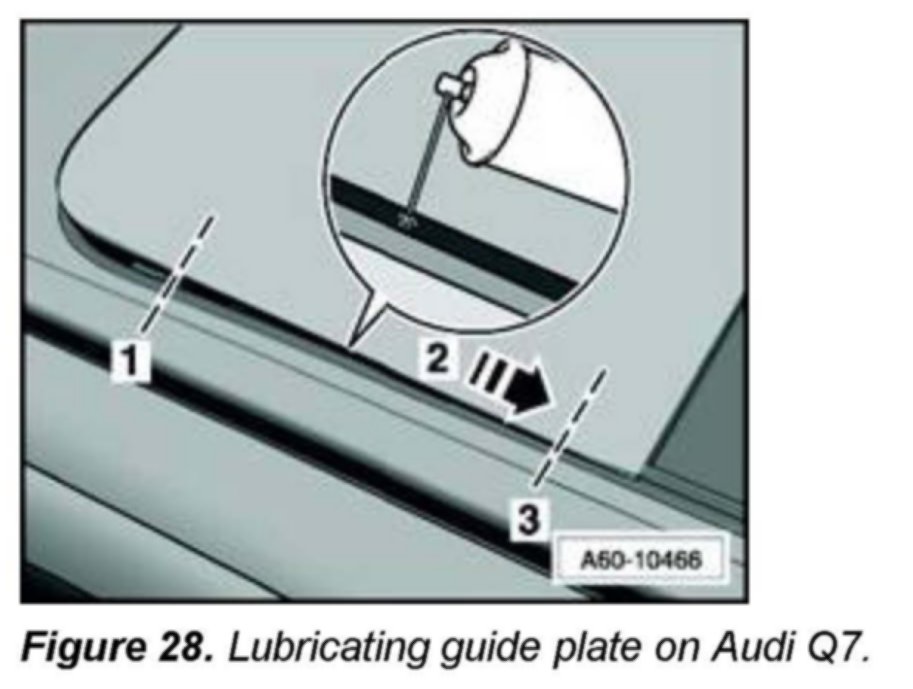

4. Spray lubricant G 060 751 A3 along the mechanism of the rear sunroof panel (Audi Q7) as shown in Figure 28.
