Overview of Relay

Relay

Overview of Relay

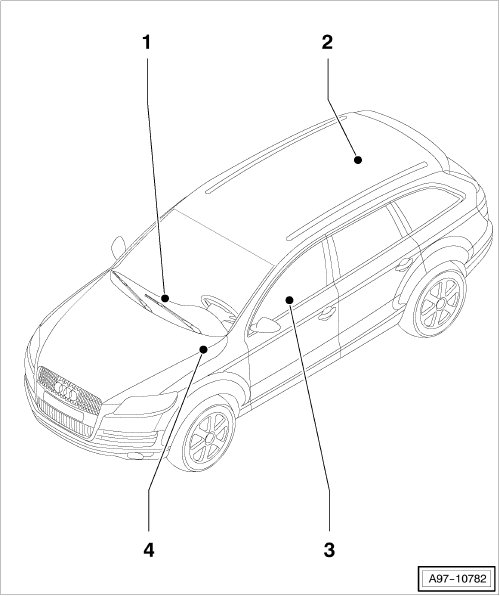

1 - Relay and fuse carrier
• Component Location and Position of Relays => [ Relay and fuse carrier ]

2 - Relay and fuse carrier luggage compartment, right -SF-
• Component Location and Position of Relays => [ Relay and fuse carrier luggage compartment, right -SF- ]

3 - Relay and fuse carrier below driver's seat -SD-
• Component Location and Position of Relays => [ Relay and fuse carrier below driver's seat -SD- ]

4 - Relay and fuse carrier electronics box
• Component Location and Position of Relays, gasoline engine, through May 2009 => [ Gasoline Engines, through May 2009 ]
• Component Location and Position of Relays, diesel engine, through May 2009 => [ Diesel Engines, through May 2009 ]
• Component Location and Position of Relays, gasoline engine, from June 2009 => [ Gasoline Engines, from June 2009 ]
• Component Location and Position of Relays, diesel engine, from June 2009 => [ Diesel Engines, from June 2009 ]
• Component Location and Position of Relays V12 TDI => [ Diesel Engines V12 ]
