Overview of Fuses

Fuses

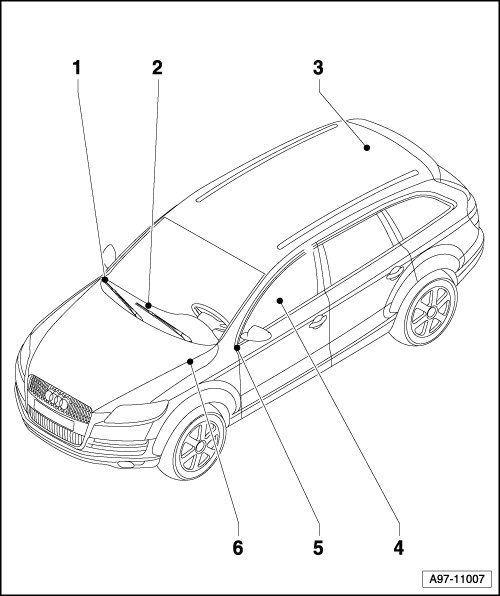

Overview of Fuses







1 - Fuses (SC) on fuse panel C
• Component Location and Position of Fuses => [ Fuses (SC) on fuse panel C ]

2 - Relay and fuse carrier instrument panel, center
• Component Location and Position of Fuses => [ Relay and fuse carrier instrument panel, center ]

3 - Fuses (SF) on fuse panel F
• Component Location and Position of Fuses => [ Fuses (SF) on fuse panel F ]

4 - Fuses (SD) (on fuse panel D)
• Component Location and Position of Fuses => [ Fuses (SD) (on fuse panel D) ]

5 - Fuses (SB) on fuse panel B
• Component Location and Position of Fuses => [ Fuses (SB) on fuse panel B ]

6 - Relay and fuse carrier electronics box, engine compartment
• Component Location and Position of Fuses => [ Relay and fuse carrier electronics box, engine compartment ]
