Relay / Fuse Panel B -SB-
Relay /fuse panel B -SB-

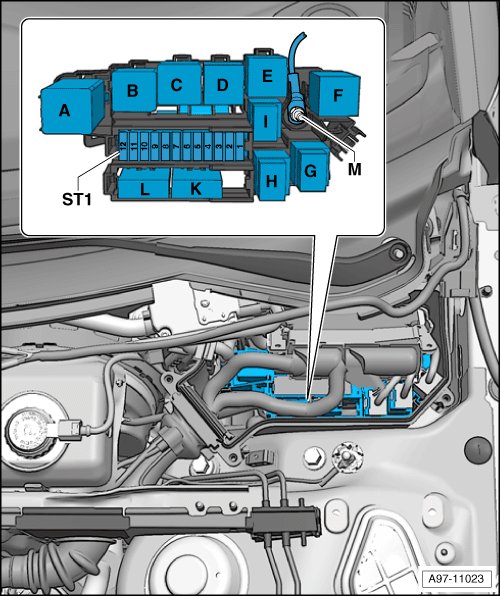

Component Location Relay/Fuse Panel B -SB- for models with left-hand drive:
In Electronics Box (in plenum chamber, driver's side)
1) Only models with diesel engine
2) Only models with cylinder 4 gasoline engine
3) Only models with cylinder 6 gasoline engine
4) Only models with cylinder 4 gasoline engine with high-voltage system (hybrid)
A - Automatic Glow Time Control Module -J179- (1)
A - Engine Component Power Supply Relay -J757- (2) (3)
B - Starter Relay -J53-
B - Starter Relay 2 -J695-
C - Secondary Air Injection (AIR) Pump Relay -J299- (3), (4)
D - Power Supply Relay (terminal 30) -J317- (1)
D - Motronic Engine Control Module (ECM) Power Supply Relay -J271- (2) (3)
E - Fuel Pump (FP) Relay -J17- (1)
E - Auxiliary Fuel Pump Relay -J832- (1)
E - Coolant Circulation Pump Relay -J151- (2)
E - Auxiliary Engine Coolant (EC) Pump Relay -J496- (3)
E - Transmission Hydraulic Pump Relay -J510- (4)
E - Transmission Cooling Circuit Relay -J696-
F - Not used
