Relay / Fuse Panel B -SB- From Model Year 2013
Relay /fuse panel B -SB-

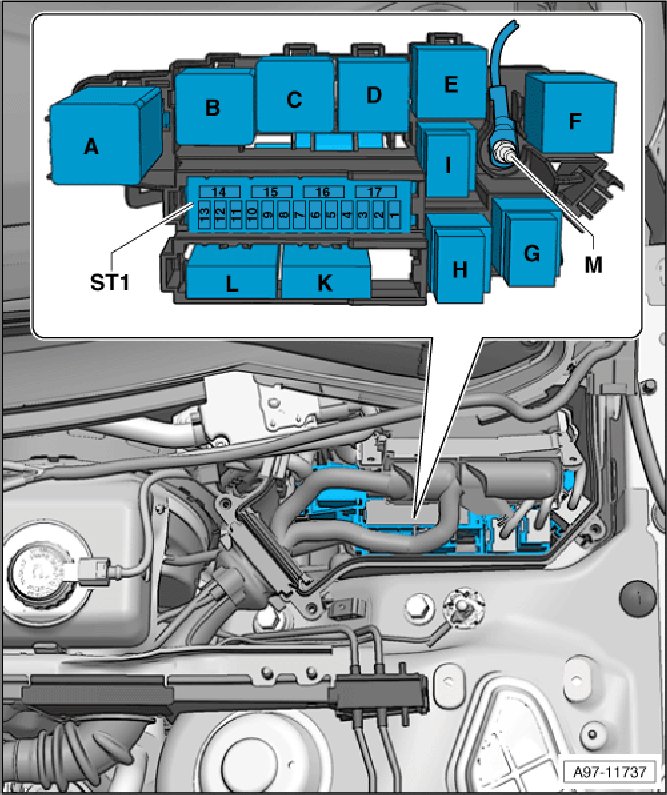

Component Location Relay/Fuse Panel B -SB- for models with left-hand drive, from model year 2013
In Electronics Box (in plenum chamber, driver's side)
1) Only models with cylinder 4 diesel engine
2) Only models with cylinder 6 diesel engine
3) Only models with cylinder 4 gasoline engine with high-voltage system (hybrid)
4) Only models with cylinder 6 gasoline engine
K - Strip fuse for engine glow plugs -S39- (1), 60 A
K - Strip fuse for engine glow plugs -S39- (2), 80 A
K - Secondary Air Injection (AIR) Pump Fuse -S130- (4) (4), 50 A
L - Transmission Hydraulic Pump Relay -J510- (3), 50 A
ST1 - Fuse Carrier 1, fuses
Fuses in Fuse Carrier ST1 on Fuse Panel B -SB- (black) from model year 2013
1) Only models with cylinder 4 gasoline engine (2.0L TFSI - Generation 3)
2) Only models with cylinder 4 gasoline engine with High-Voltage System (Hybrid)
3) Only models with cylinder 6 gasoline engine (3.0L TFSI)
4) Only models with cylinder 4 diesel engine (2.0L TDI)
5) Only models with cylinder 6 diesel engine (3.0 TDI)
6) Only models with cylinder 6 diesel engine (3.0L TDI - Bin 5)
