Overview of Fuses

Fuses

Overview of Fuses

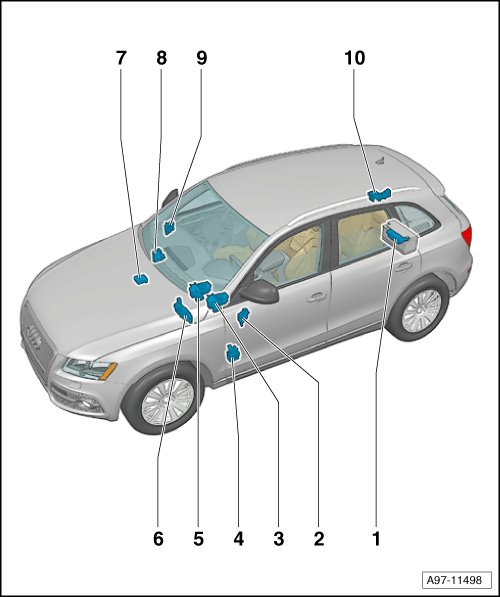

1 - Fuse Panel A -SA-
• Component Location: => [ Fuse Panel A -SA- ] Fuse Panel A -SA-

1 - Battery Separation Relay Fuse
• Component Location beside Auxiliary Battery
• Battery Separation Relay Fuse -S171- , Special Purpose Vehicle Fuse 15 -S305- , 125A
• Auxiliary Battery Fuse -S65-
• Fuse 4 - terminal 30 -S207-, 110A
• Fuse 5 - terminal 30 -S208-, 110A
• Fuse 6 - terminal 30 -S209-, 200A

2 - Fuse Panel C -SC
• Component Location from model year 2013: => [ Fuse Panel C -SC- From Model Year 2013 ] Fuse Panel C -SC- From Model Year 2013

3 - Relay / fuse panel with Vehicle Electrical System Control Module -J519-
• Component Location => [ Relay / Fuse Panel with ] Relay / Fuse Panel w/ Vehicle Electrical System Control Module -J519-

4 - 6-Pin connector station A-pillar, driver's side
• Component Location => [ 6-Pin connector station A-pillar ] 6-Pin Connector Station A-Pillar, Driver's Side

5 - 3-Pin relay / fuse panel
• Component Location => [ 3-Pin Relay / Fuse Panel ] 3-Pin Relay / Fuse Panel

6 - Relay / fuse panel B -SB-
• Component Location for models with left-hand drive, from model year 2013: => [ Relay / Fuse Panel B -SB- From Model Year 2013 ] Relay / Fuse Panel B -SB- From Model Year 2013

7 - Terminal 30 Wire Junction 2 -TV22- With Battery Jump Start Terminal -U6-

8 - 6-Pin connector station A-pillar, Front Passenger's Side
• Component Location => [ 6-Pin Connector Station A-Pillar ] 6-Pin Connector Station A-Pillar, Front Pass Side

9 - Fuse panel D -SD-
• Component Location [ Fuse panel D -SD- ] Fuse Panel D -SD-

10 - Relay /Fuse Panel F -SF-
• Component Location, from model year 2013 => [ Relay /Fuse Panel F -SF- From Model Year 2013 ] Relay /Fuse Panel F -SF- From Model Year 2013
