Fuses (SC) on Fuse Panel C, Left-Hand Drive

Fuses

Fuses (SC) on fuse panel C, left-hand drive


Component Location:

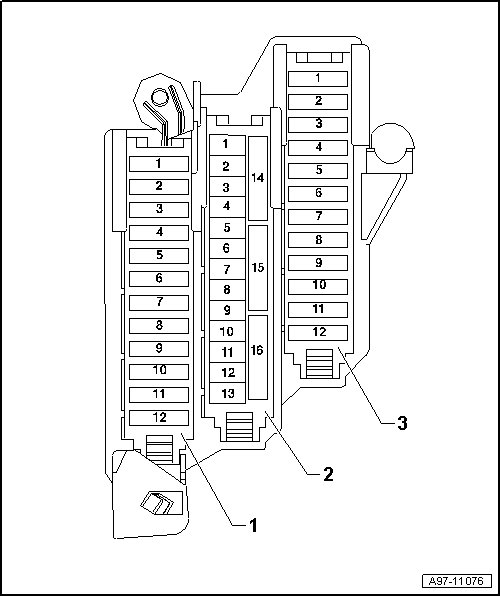

On left instrument panel -1-.





1 Not used

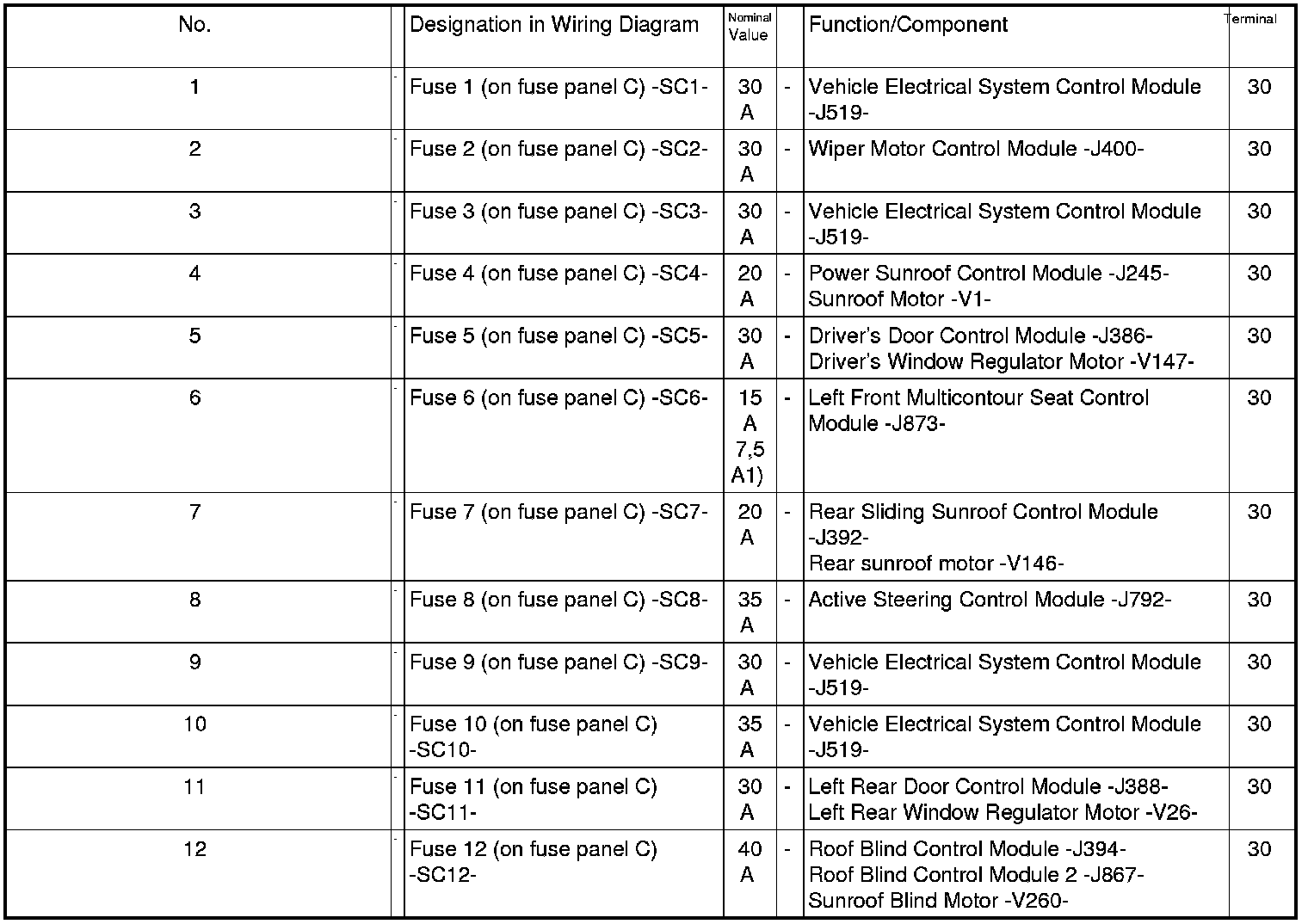

2 Fuse Carrier ST2 (brown)
• Position of fuses => [ Position of Fuses Fuse Carrier ST2 (brown), left-hand drive ]
3 Fuse Carrier ST3 (black)
• Position of fuses => [ Position of Fuses Fuse Carrier ST3 (black), left-hand drive ]


Position of Fuses Fuse Carrier ST2 (brown), left-hand drive








Note:
• 1) Only models with Heated Steering Wheel

• 2) Through May 2011

• 3) Only high-voltage models



Position of Fuses Fuse Carrier ST3 (black), left-hand drive








Note:
• 1) from June 2011
