Fuses (SA) on Fuse Panel A

Fuses

Fuses (SA) on fuse panel A


Component Location:





In engine compartment, right -1-.





A - Fuse Panel A
• Position of fuses Gasoline => [ Position of fuses, fuse panel A, gasoline engine ]
• Position of fuses Diesel => [ Position of fuses, fuse panel A, diesel engine ]
• Position of fuses, High-Voltage Models => [ Position of fuses on fuse panel A, High-Voltage Models ]

B - Secondary Air Injection (AIR) Pump Fuse -S130- , 50A
• Models with gasoline engine

B - Glow Plugs Fuse -S125- , 80A
• Models with diesel engine

C - Glow Plug Fuse 2 -S189- , 80A
• Models with 8 cylinder diesel engine

C - Secondary Air Injection (AIR) Pump Fuse 2 -S284- , 50A
• Models with 12 cylinder gasoline engine

C - Fuse 7 - terminal 30 -S210- , 50 A
• Only high-voltage models

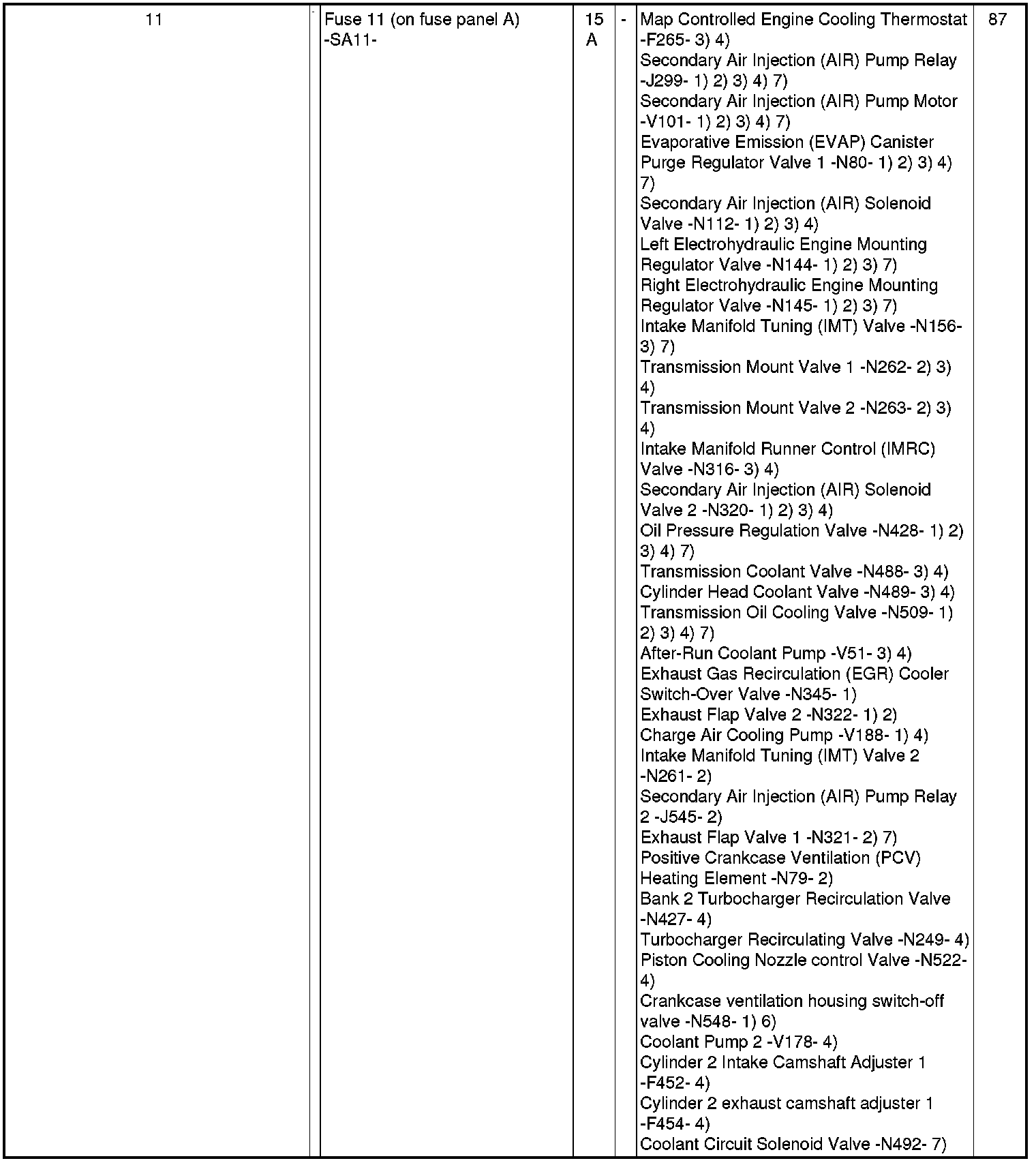

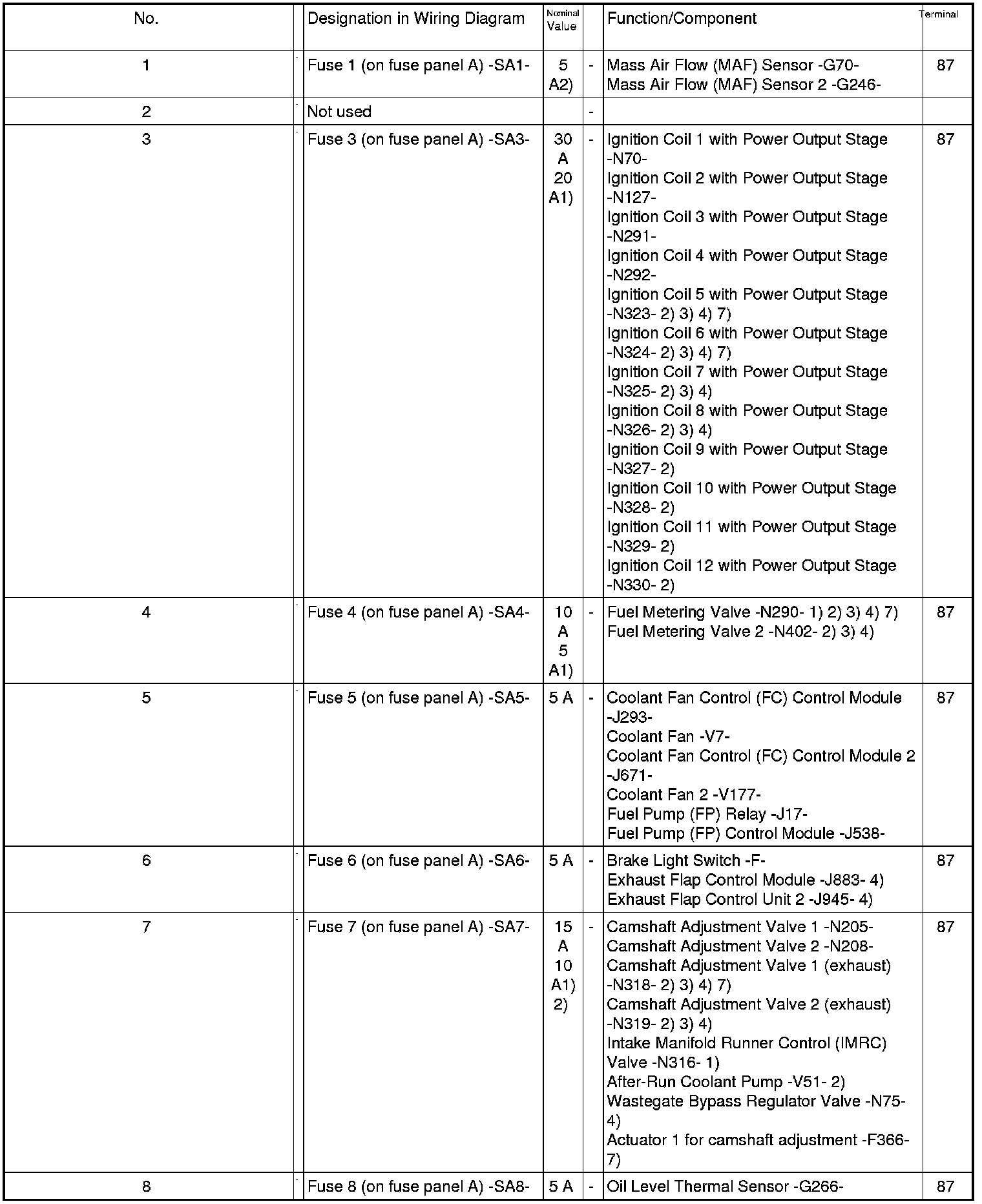

Position of fuses, fuse panel A, gasoline engine




















Note:
• 1) Only engine codes CGWA, CGXC, CMDA, CGXB, CGWD, CTUB

• 2) Only engine code CEJA

• 3) Only engine code CDRA

• 4) Only engine codes CEUA, CGTA

• 6) from June 2012

• 7) Only engine code CPAA



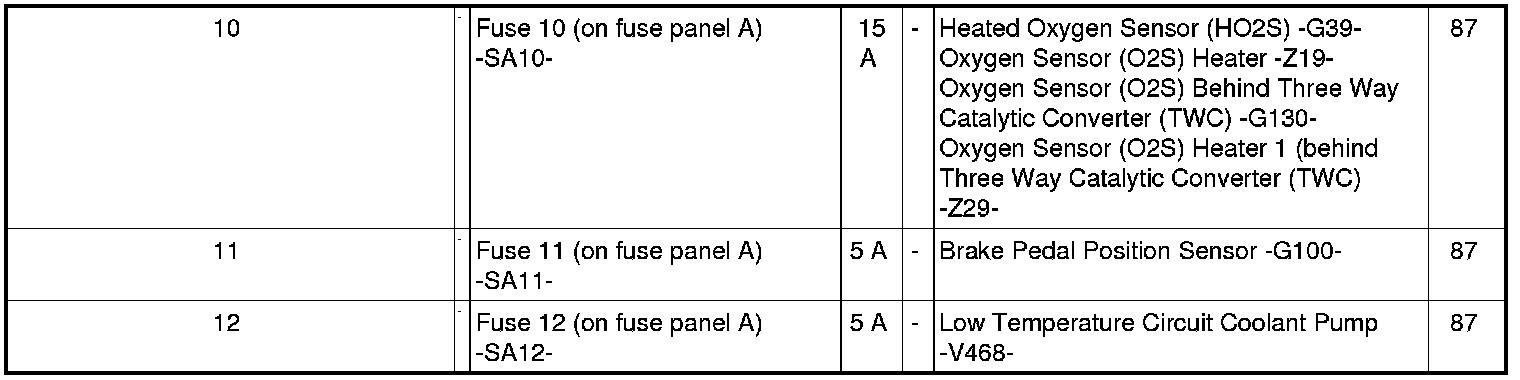

Position of fuses, fuse panel A, diesel engine








Note:
• 1) Only engine code CDSB

• 2) Only engine codes CDTA, CDTB, CLAB

• 3) Only engine code CMHA, CPNA

• 4) Through October 2011

• 5) From November 2011



Position of fuses on fuse panel A, High-Voltage Models
