Fuse Panel Front End

Fuses

Fuse Panel Front end


Component Location:

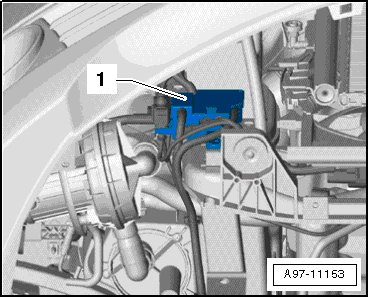

On front long member, near coolant fan -1- .

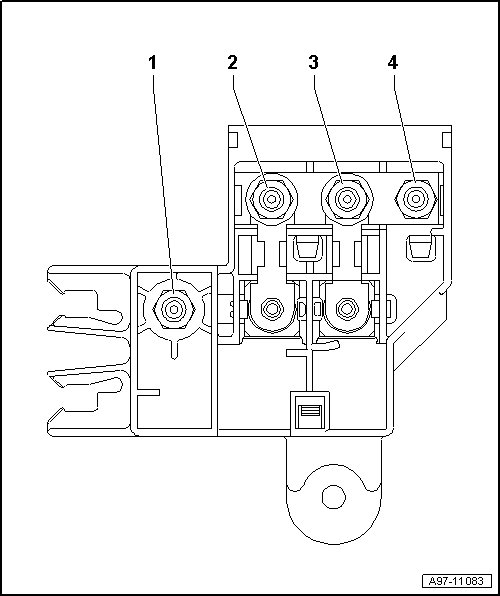

1 Ground Connection to (685) Ground Connection 1 (on right front long member)
2 Coolant Fan Single Fuse -S42-
• 40 A without trailer coupling
• 60 A with trailer coupling
3 Second Speed Coolant Fan Fuse -S104-
• 40 A without trailer coupling
• 60 A with trailer coupling
4 Terminal 30 from Terminal 30 Wire Junction 2 -TV22-
