Steering - Warning In Cluster, DTC For End Stops

48 Power steering warning in cluster, DTC for end stops

48 13 35

2029622/3

February 14, 2013

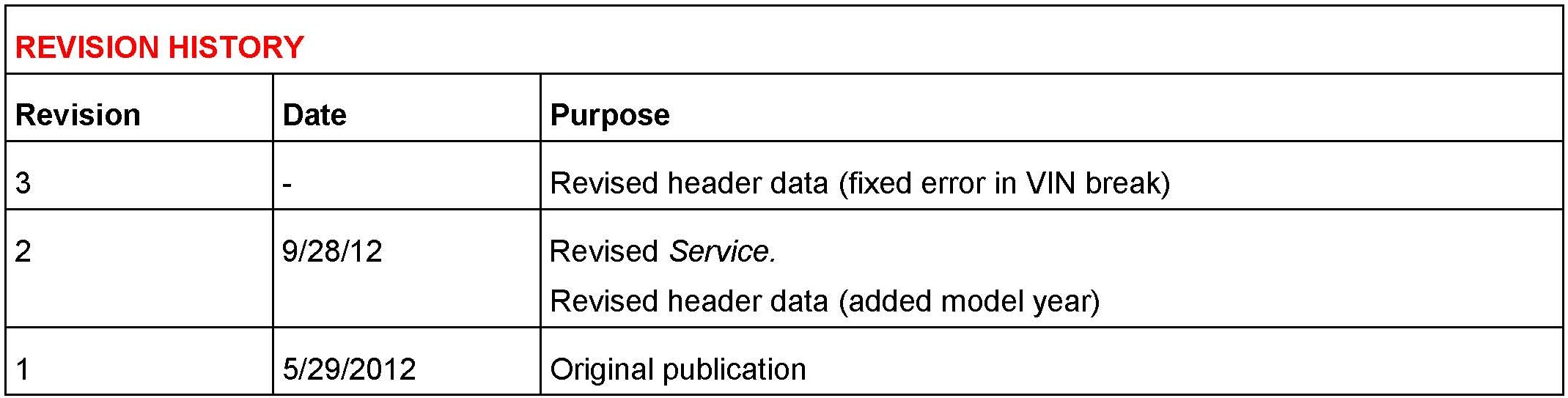

Supersedes Technical Service Bulletin Group 48 number 12-34 dated October23, 2012 for reasons listed below.

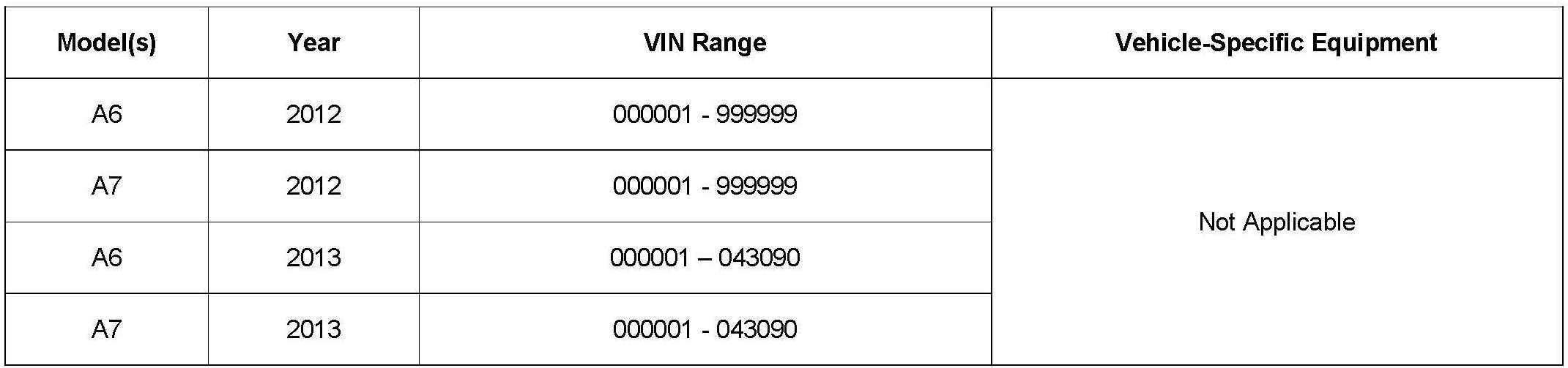

Vehicle Information





Condition

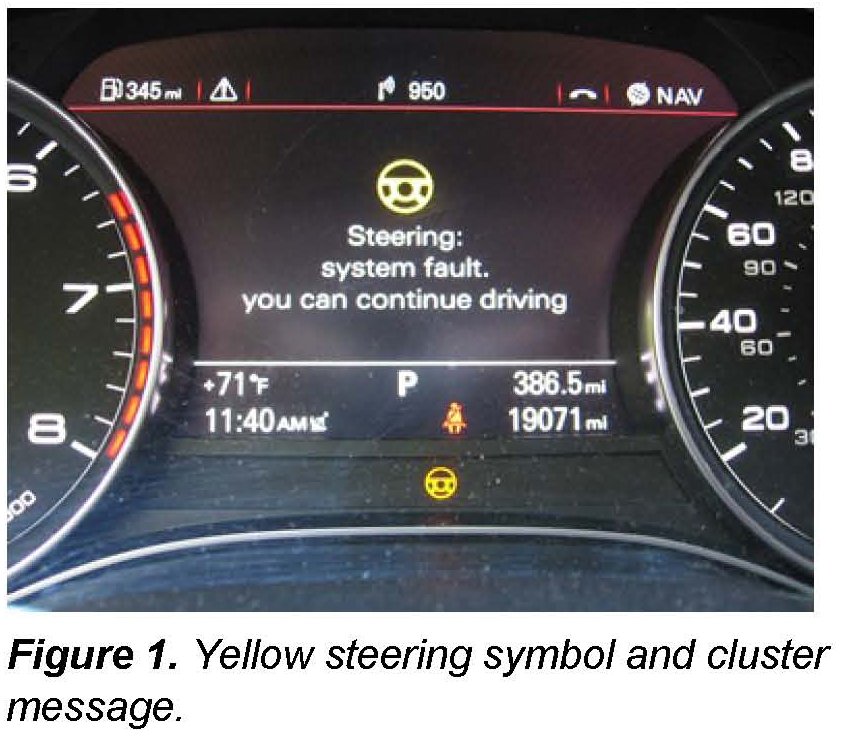

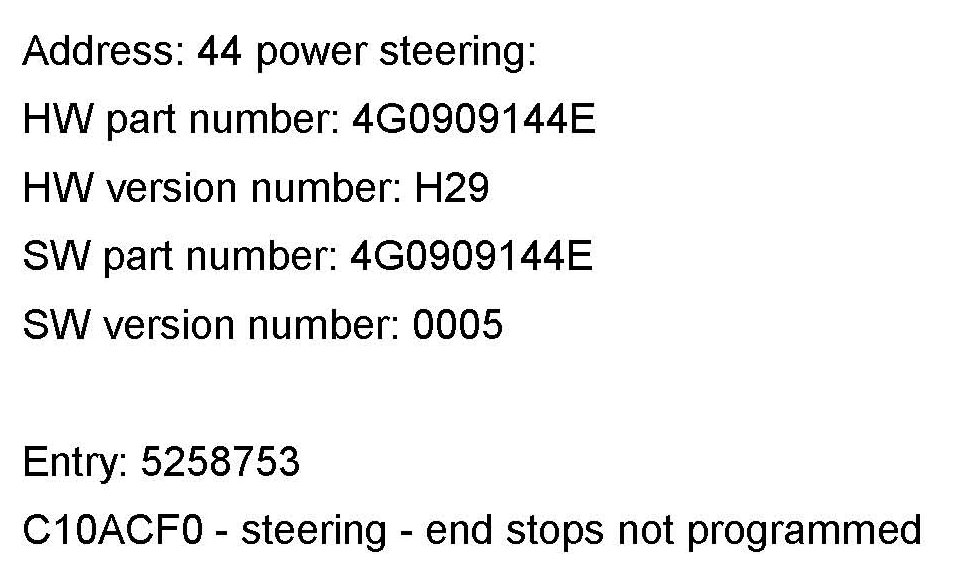

The yellow steering symbol is illuminated in the instrument cluster. DTC C10ACFO (steering end stops not programmed) is logged in the power steering control unit, J500 (44).

Technical Background





The power steering control unit, J500 (44), expects to receive a VIN message over the data bus shortly after terminal 15 is turned on. If the VIN message is not received at the expected time, the power steering control unit assumes it has been installed in a new vehicle and discards the programmed end position values.

Production Solution

Optimization of the VIN message handling was implemented with power steering control unit, J500 (44), software level 0009.

Service

SVM Update Instructions

1. Follow all instructions in TSB 2014732 00 Software Version Management (SVM), operating instructions.

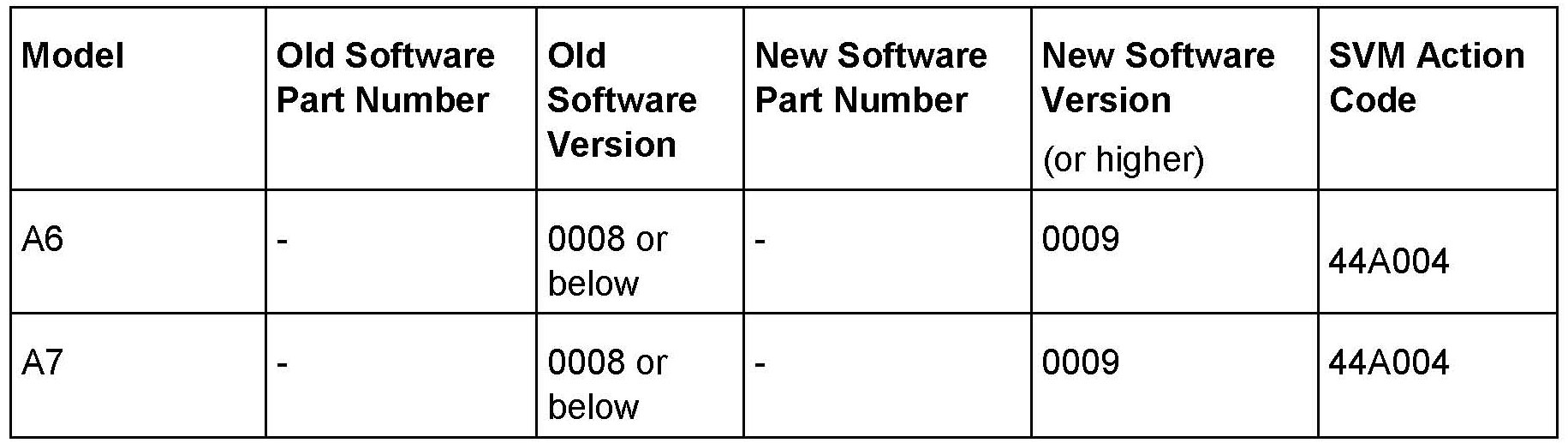

2. Update the power steering gear control module (J500) using the SVM action code as listed in the table if necessary.

3. Check the tires and adjust to the proper pressure if necessary. Store the tire pressures in the MMI menu. Stored tire pressures may be lost during the SW update.





Warranty

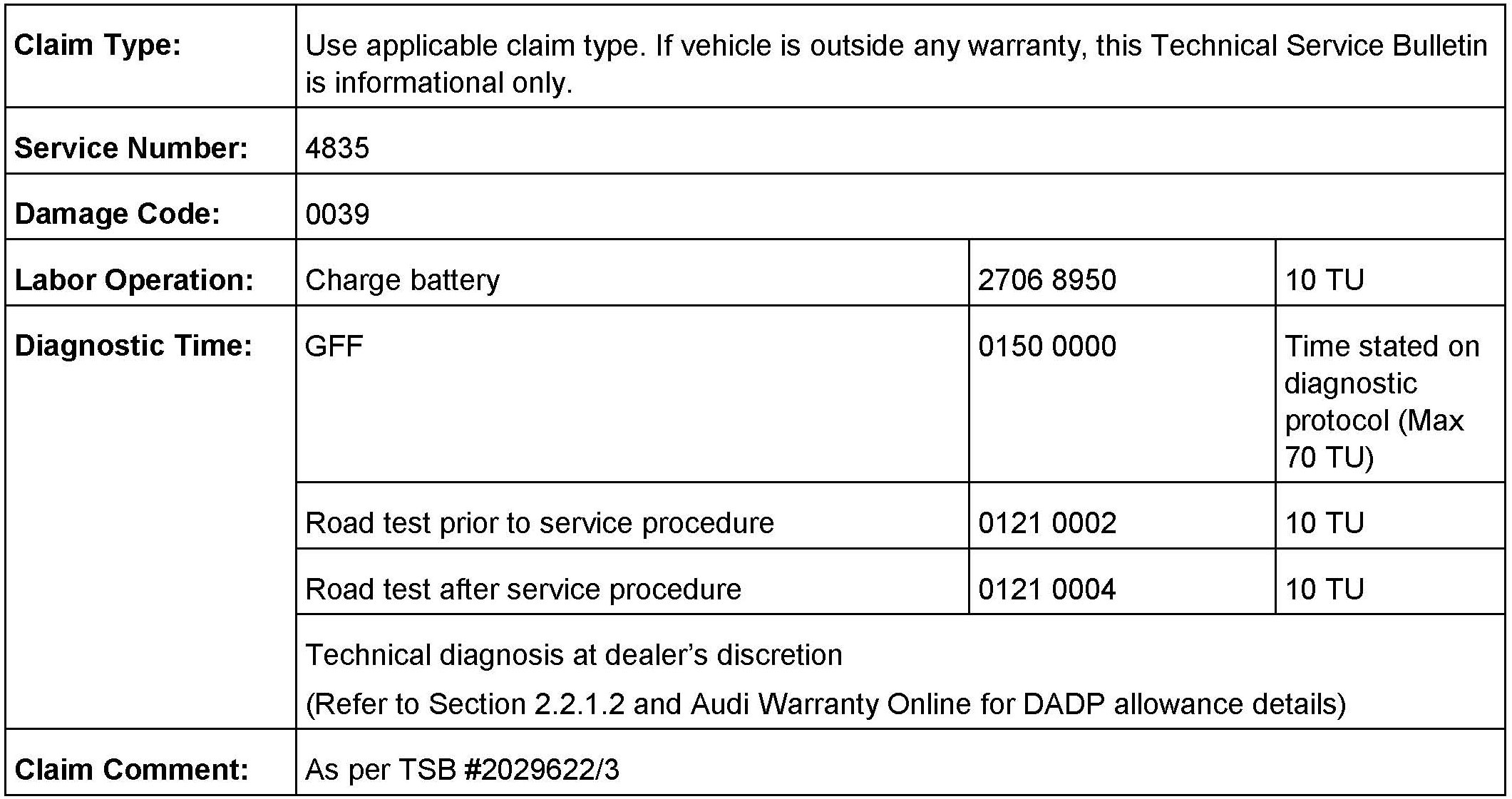

All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.

Additional Information

The following Technical Service Bulletin will be necessary to complete this procedure:

^ TSB 2011732 00 Software Version Management (SVM), operating instructions.

All part and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Dept. and service manuals for the latest information.
