Home >> Audi >> 2013 >> A3 (8PA) L4-2.0L DSL Turbo (CBEA) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Fuses Below Instrument Panel Left

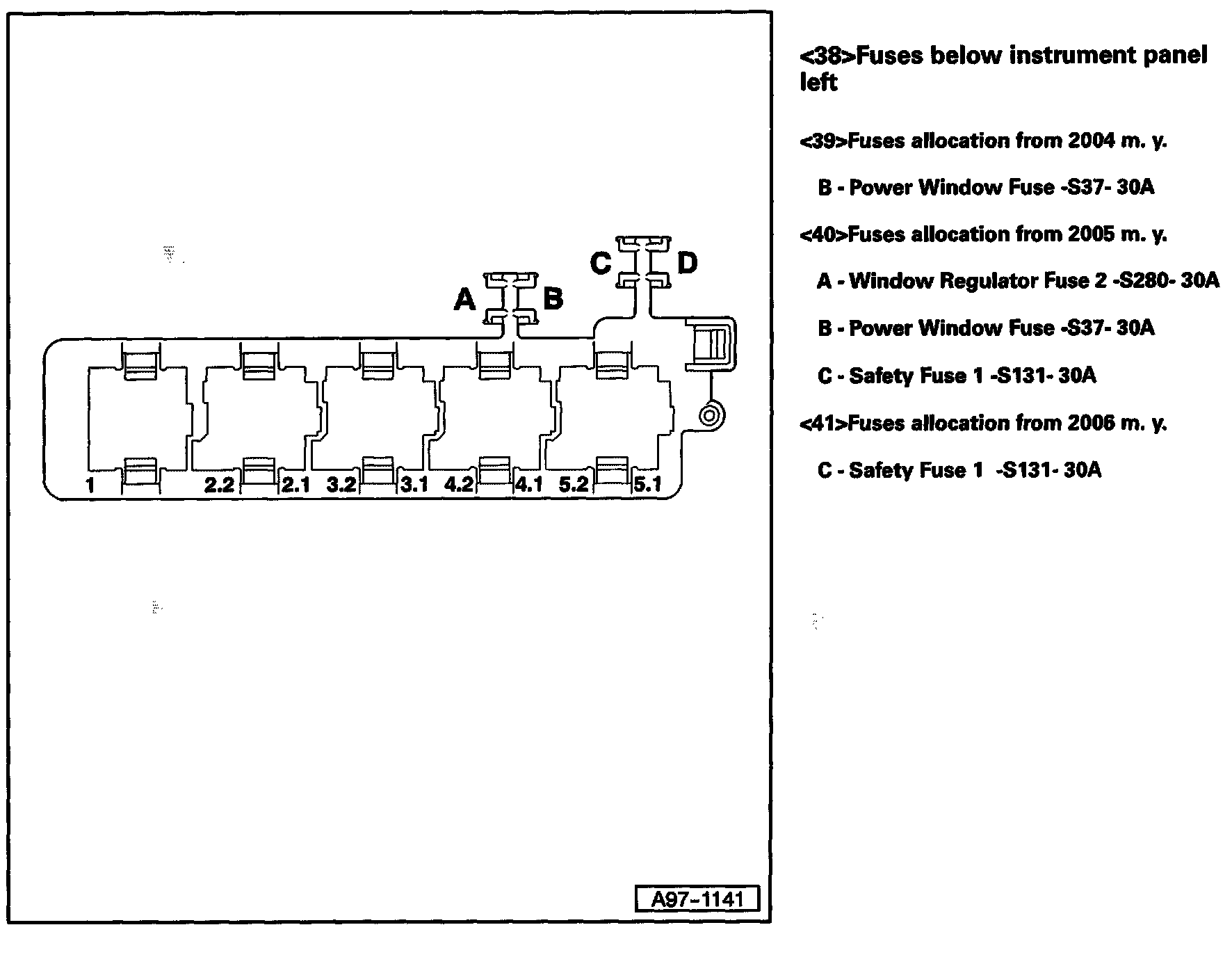

Fuses Below Instrument Panel Left




Fuses Below Instrument Panel Left:
