Fuse Panel C -SC- Under Instrument Panel, Left
>>
Position of Fuses on Fuse Panel, From MY 2007
Position of Fuses on Fuse Panel, From MY 2007

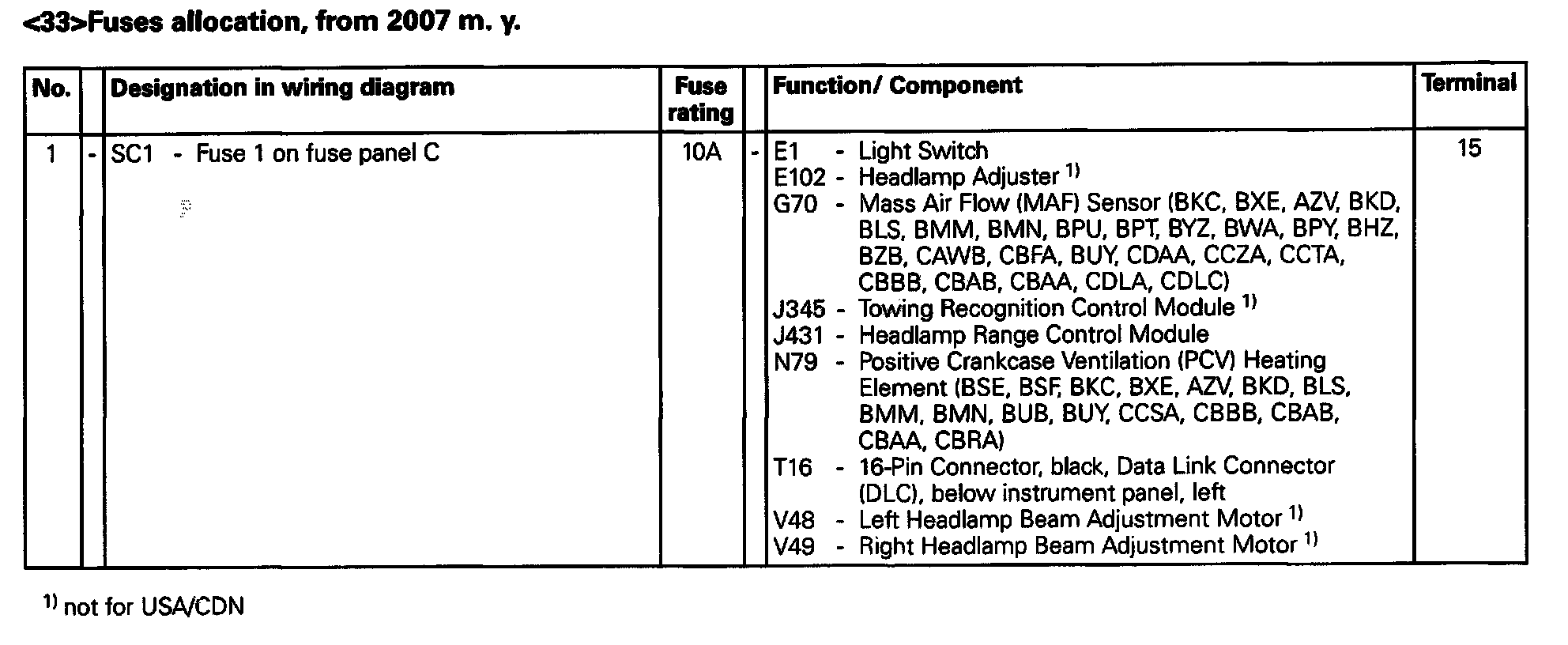

Fuse 1:

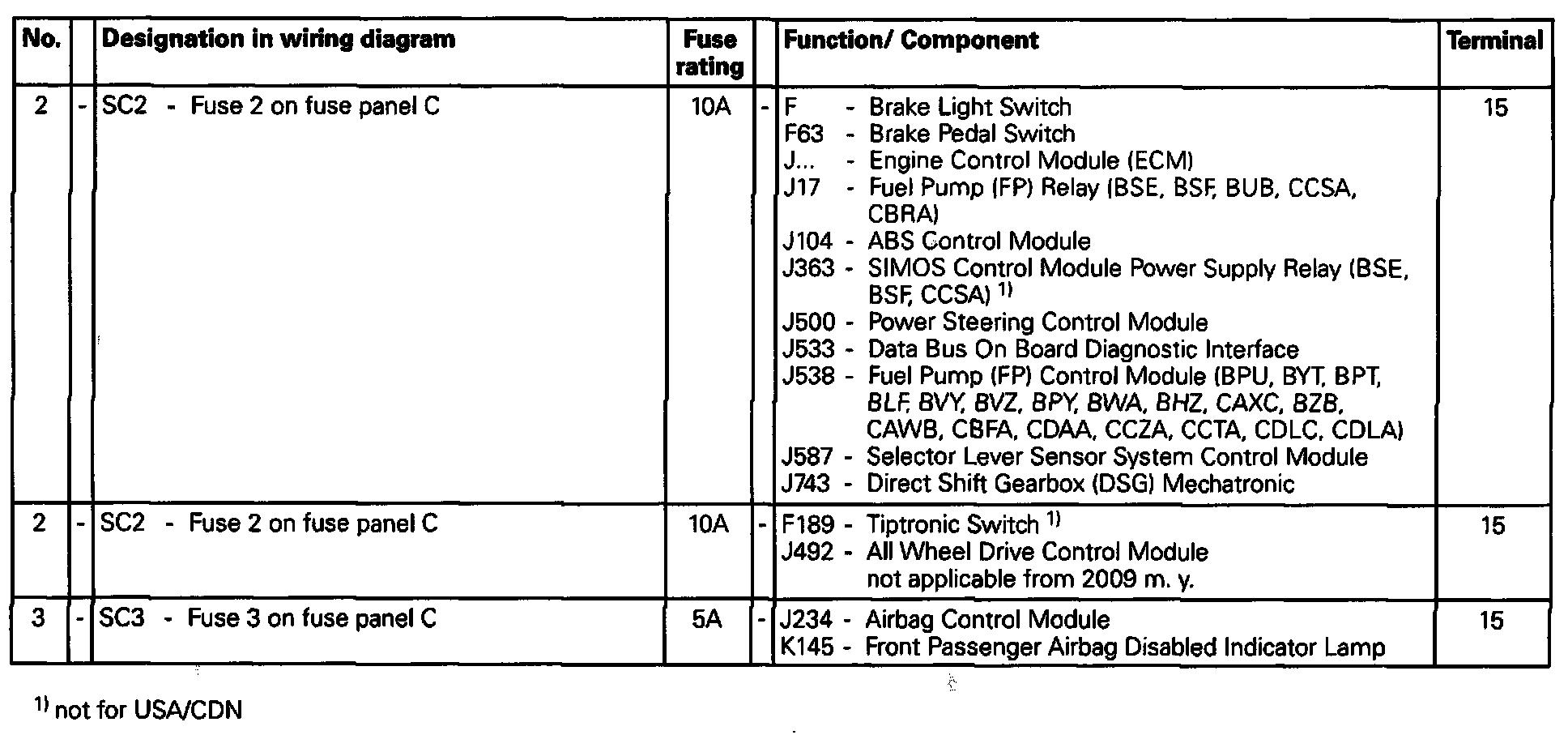

Fuse 2 - 3:

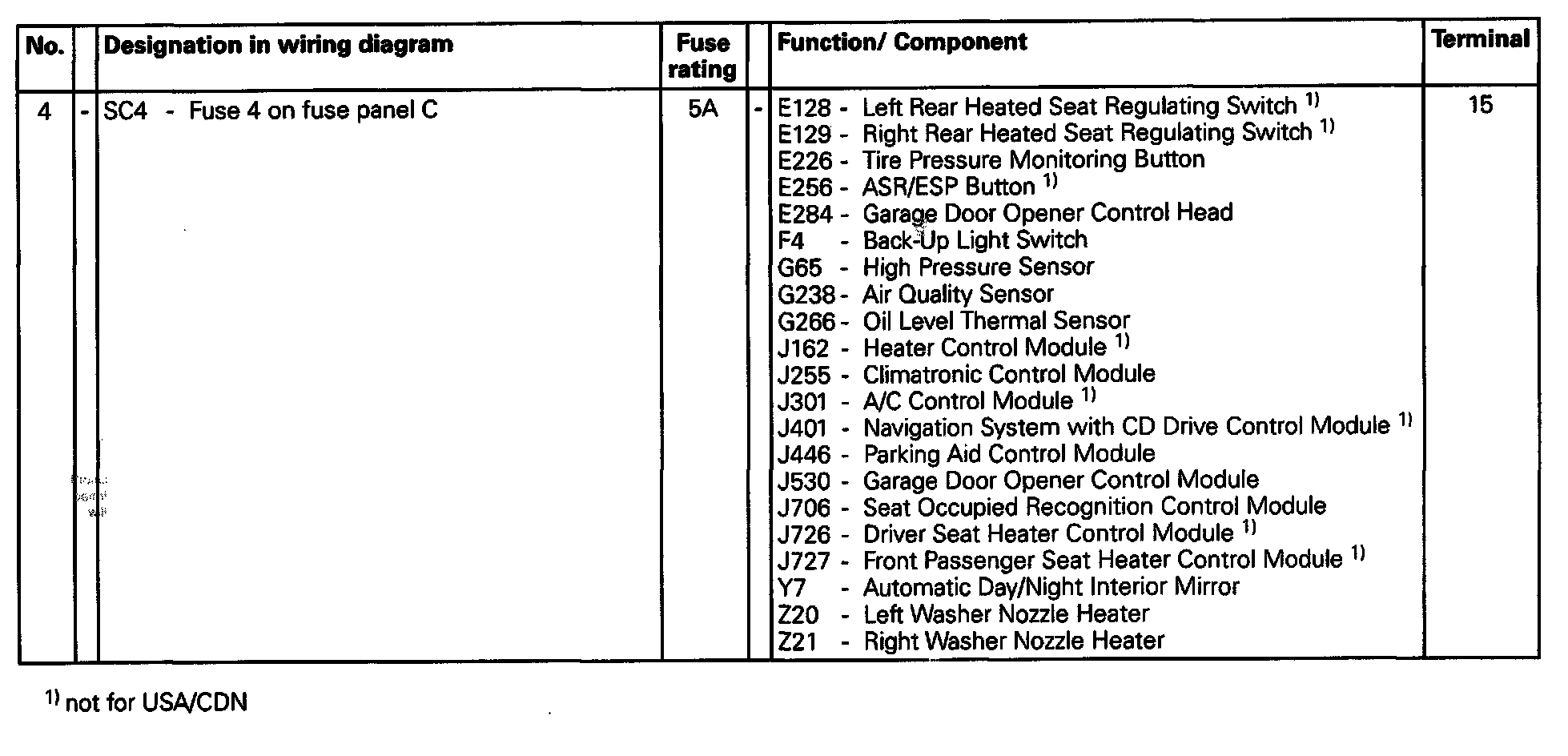

Fuse 4:
Fuses 5 - 15:

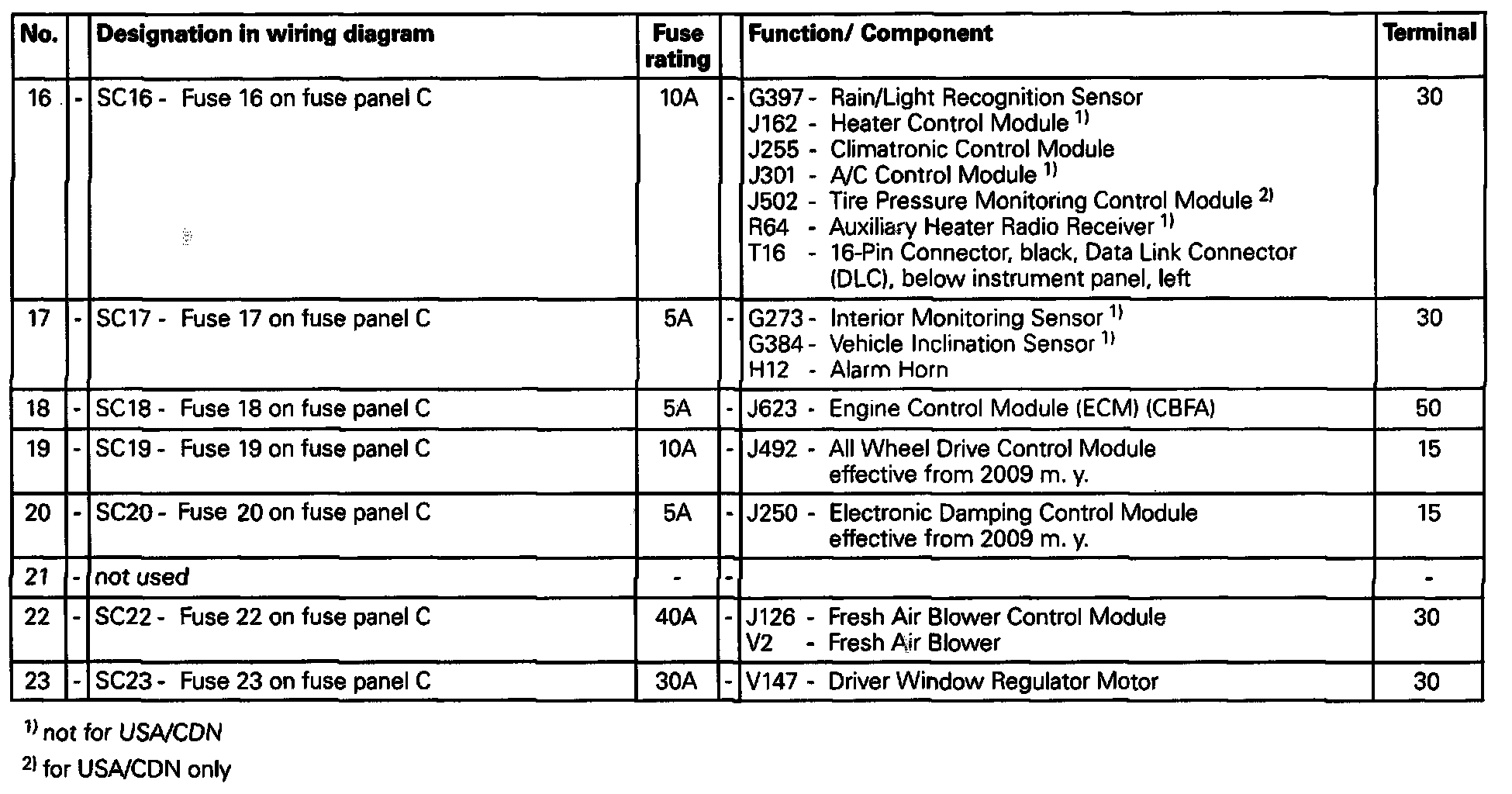

Fuses 16 - 23:
Fuses 24 - 29:

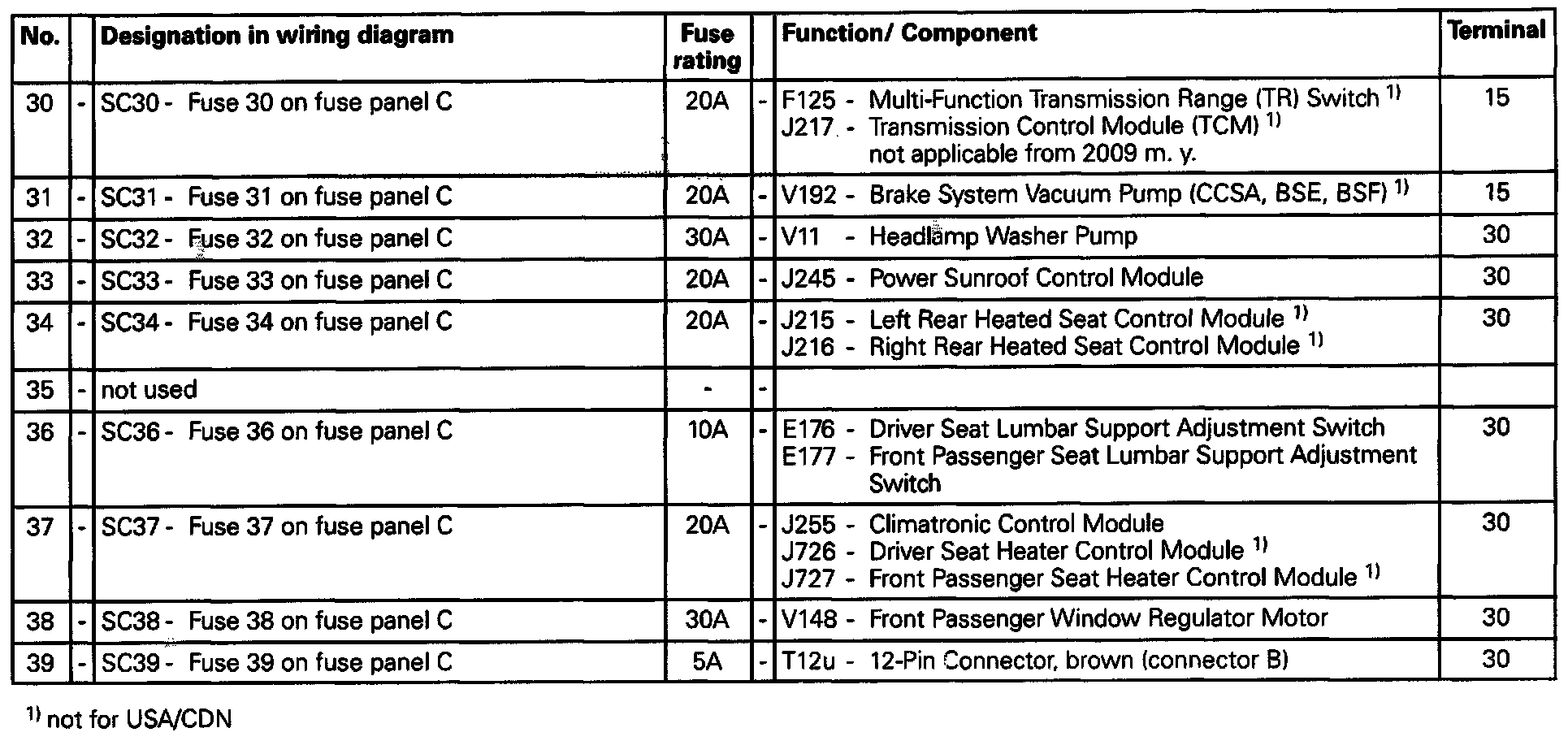

Fuses 30 - 39:
Fuses 40 - 45:
Fuses 46 - 49:
