Fuse Panel B -SB- on Electronics Box High, Engine Compartment, Left
>>
Fuse Arrangements Electronics Box High, From MY 2007
Fuse Arrangements Electronics Box High, From MY 2007

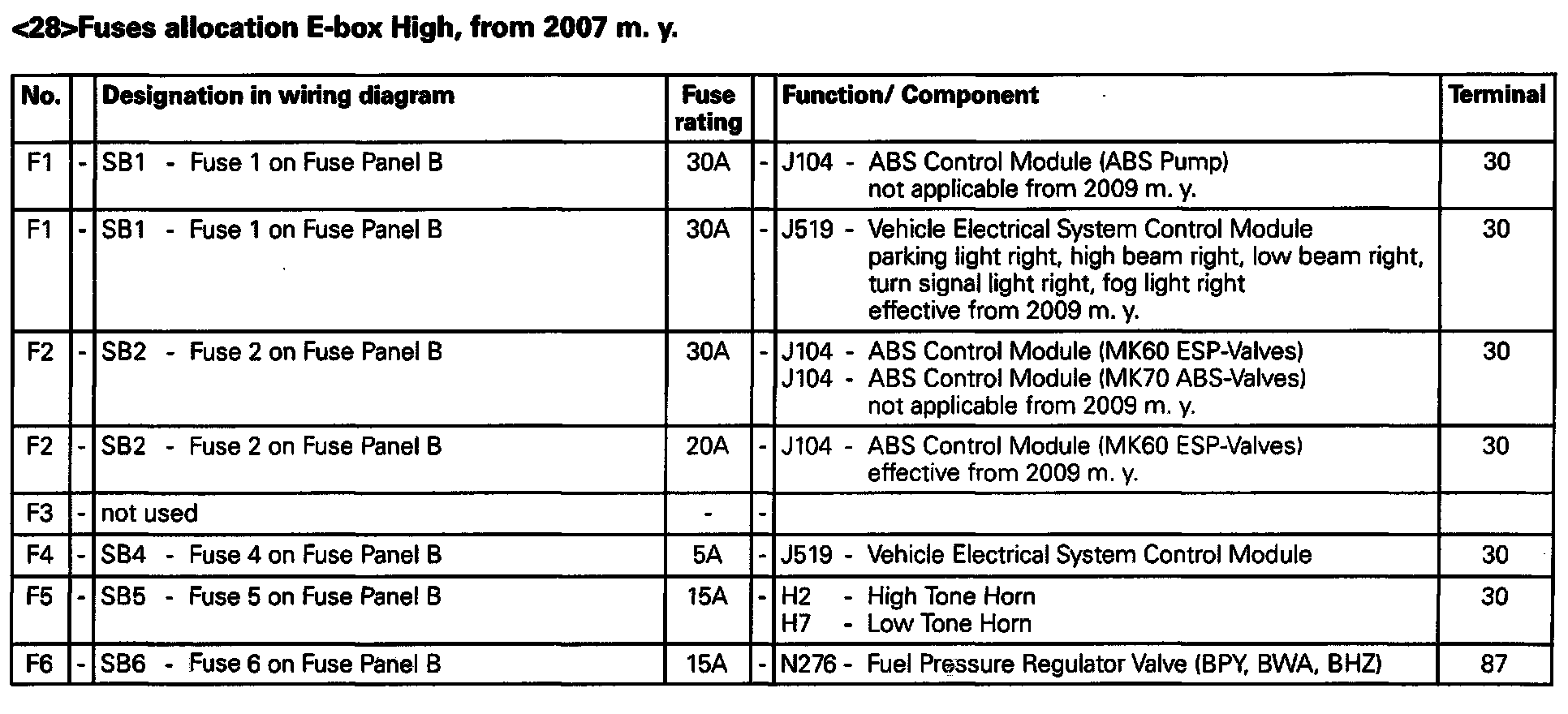

Fuses F1 - F6:

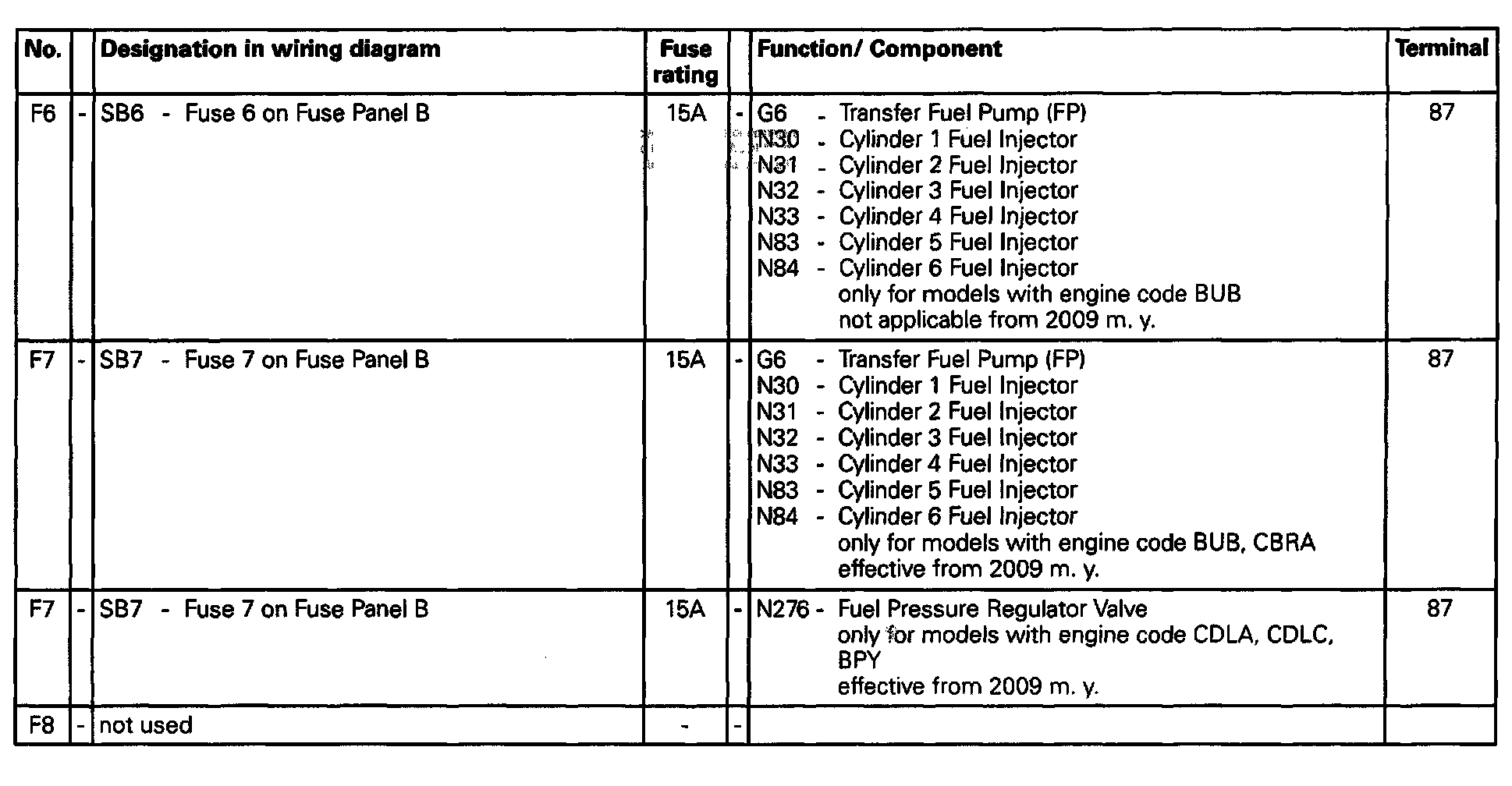

Fuses F6 - F8:

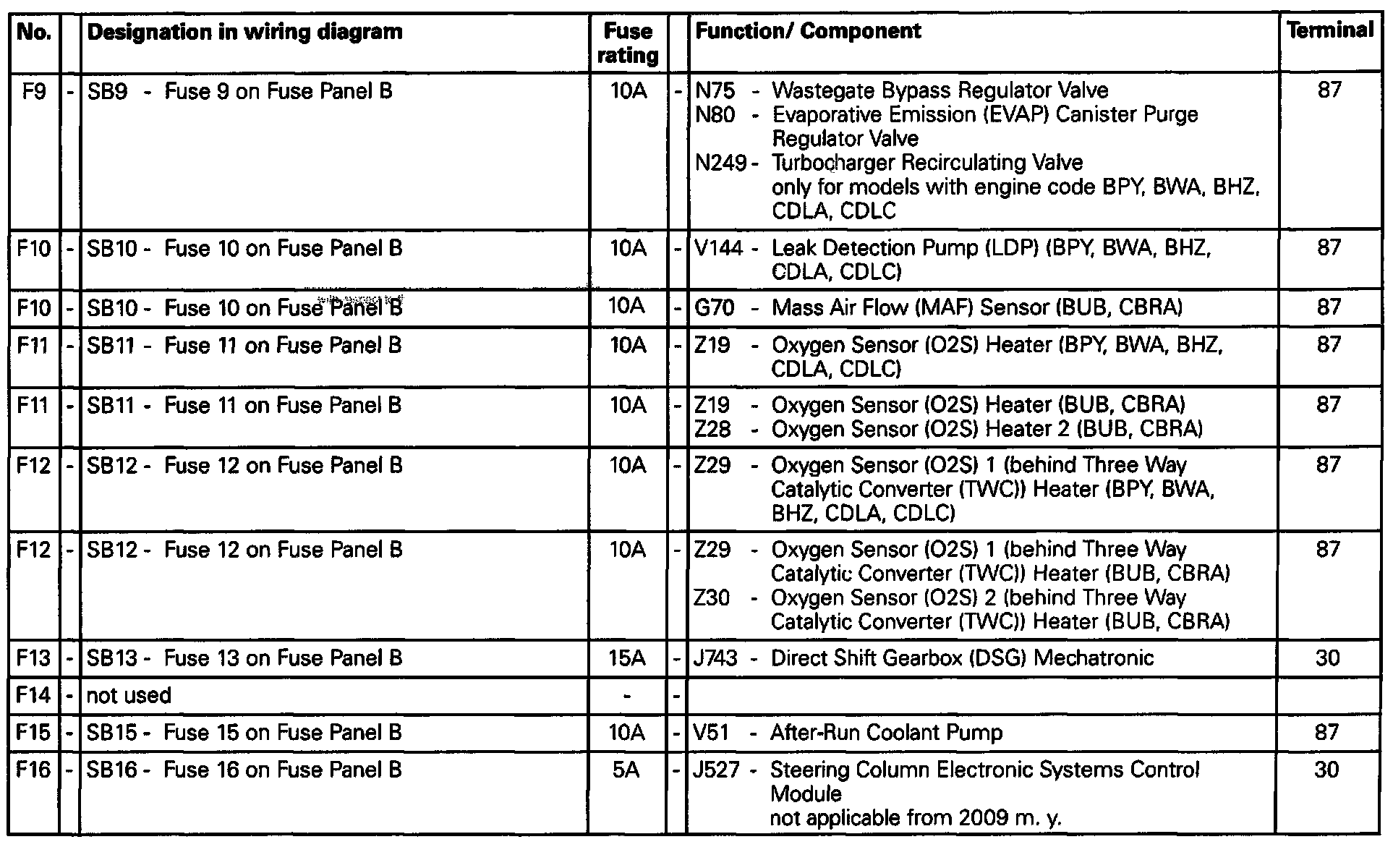

Fuses F9 - F16:

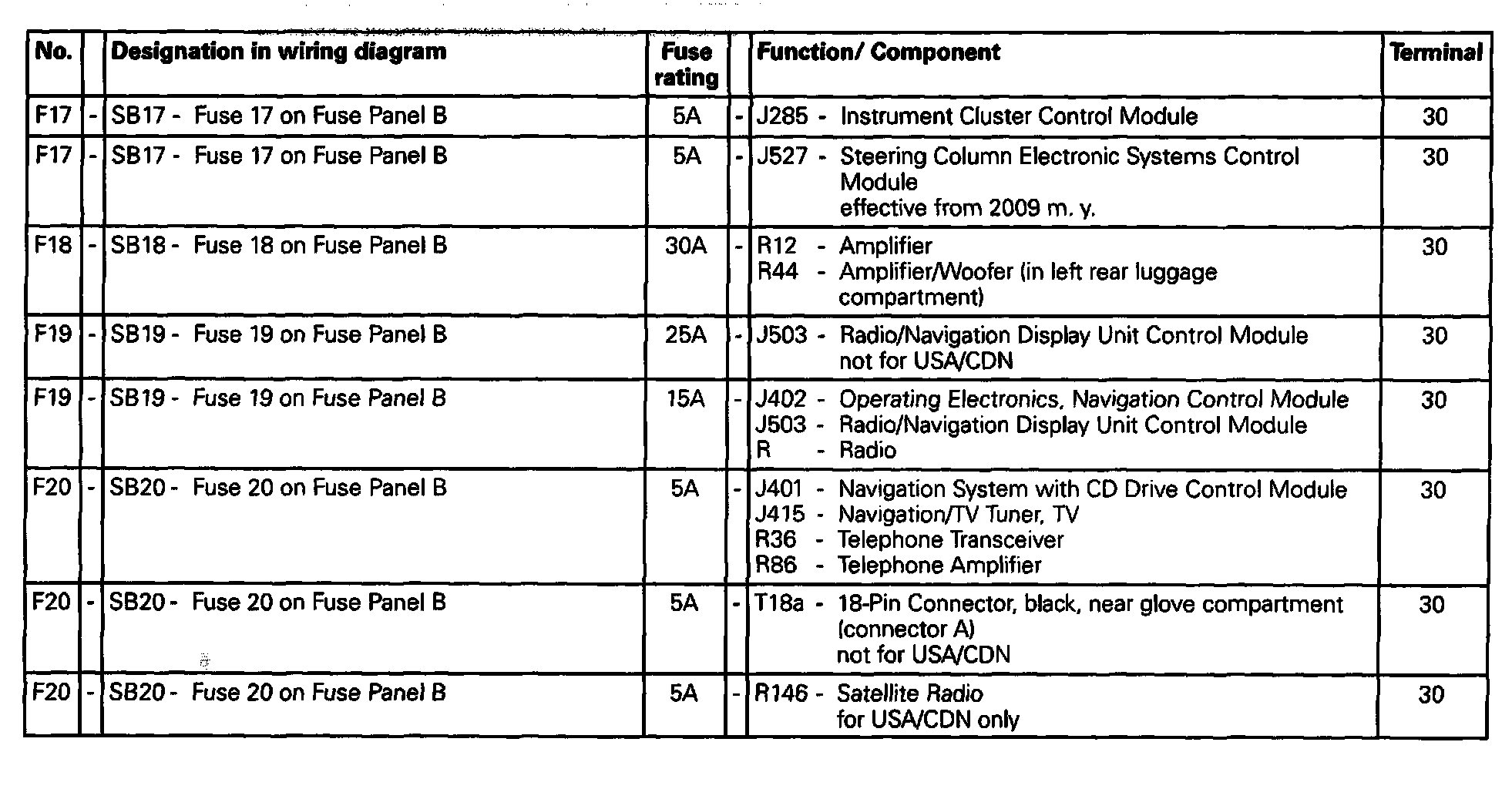

Fuses F17 - F20:

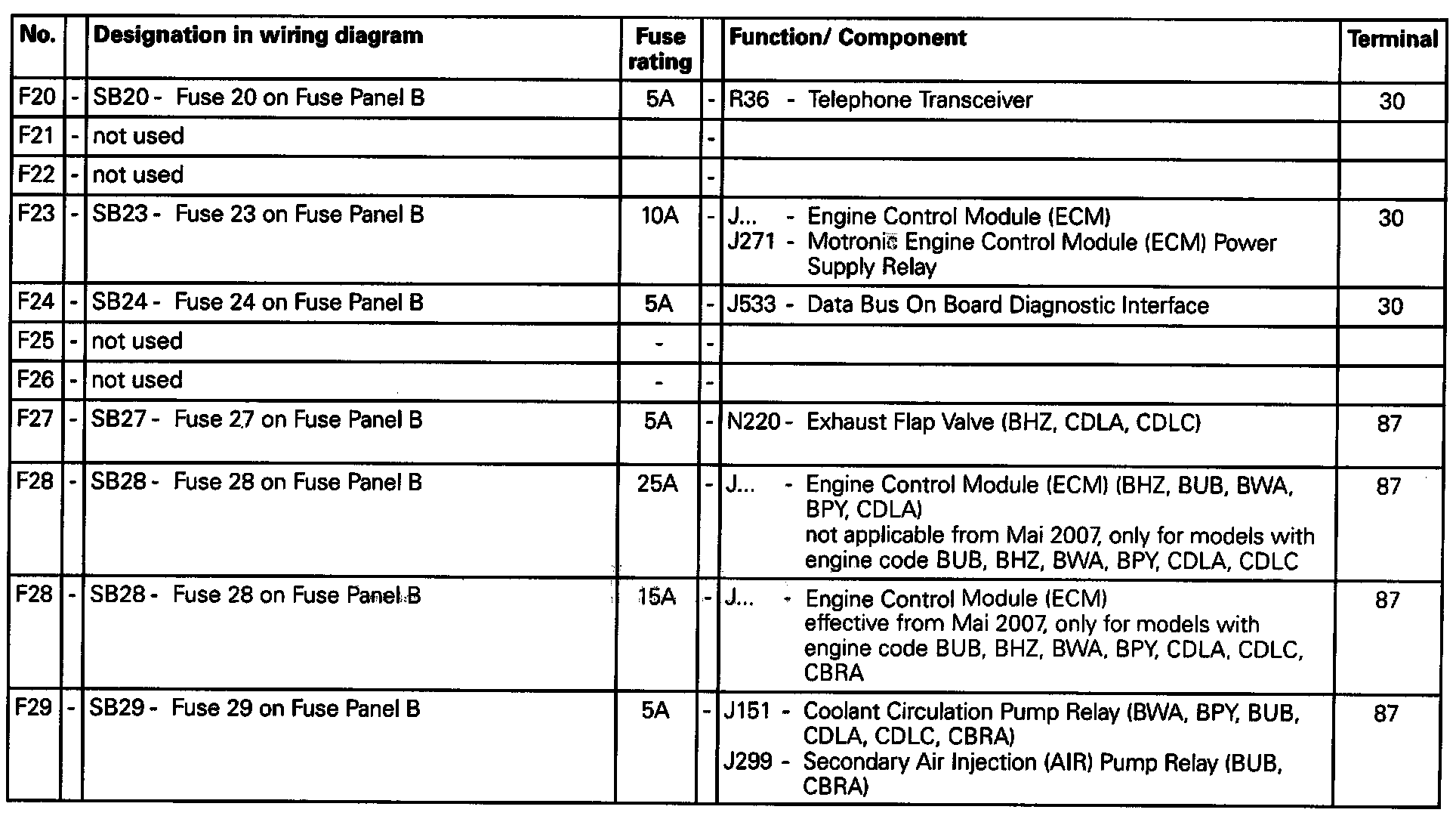

Fuses F20 - F29:

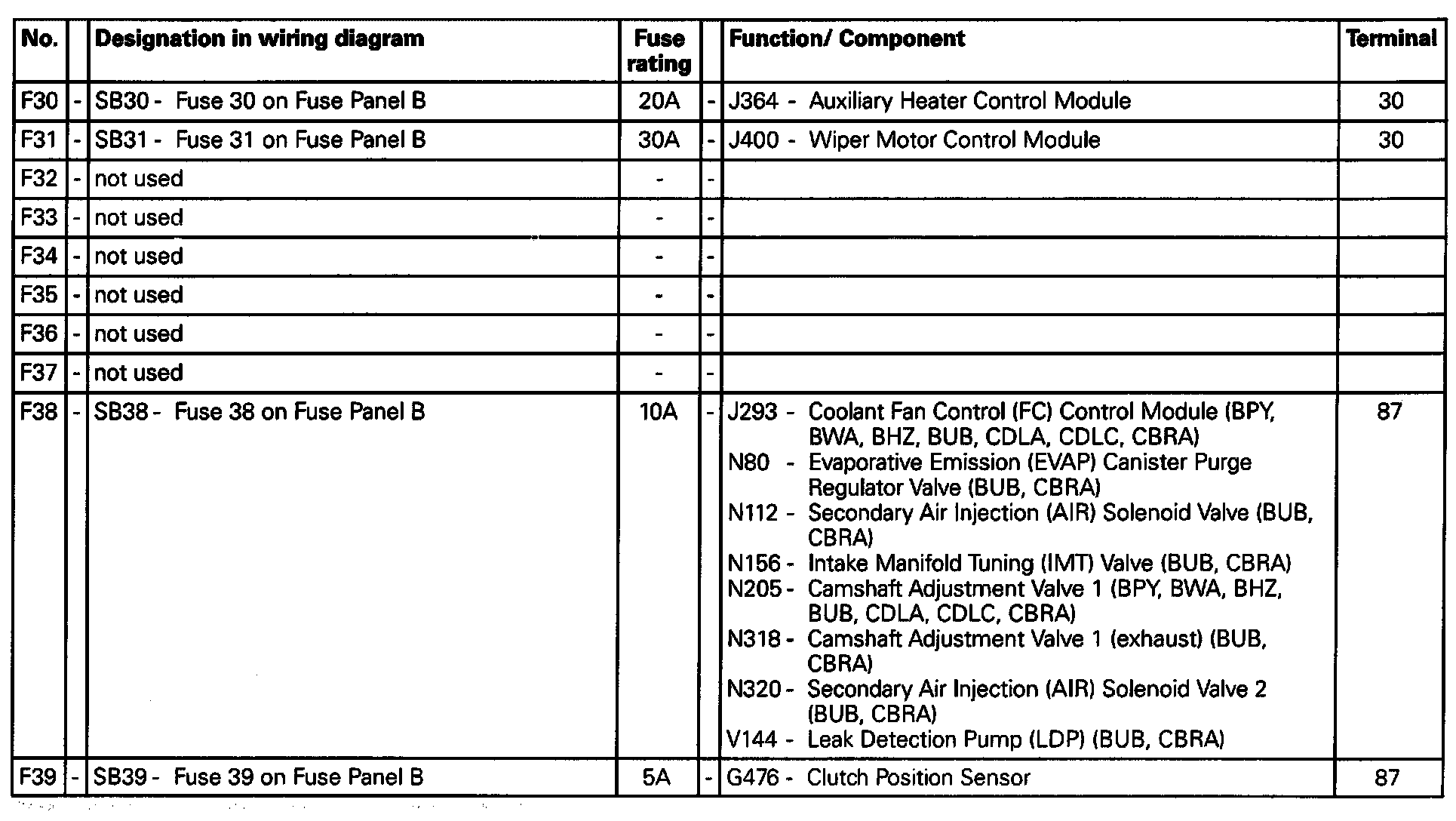

Fuses F30 - F39:

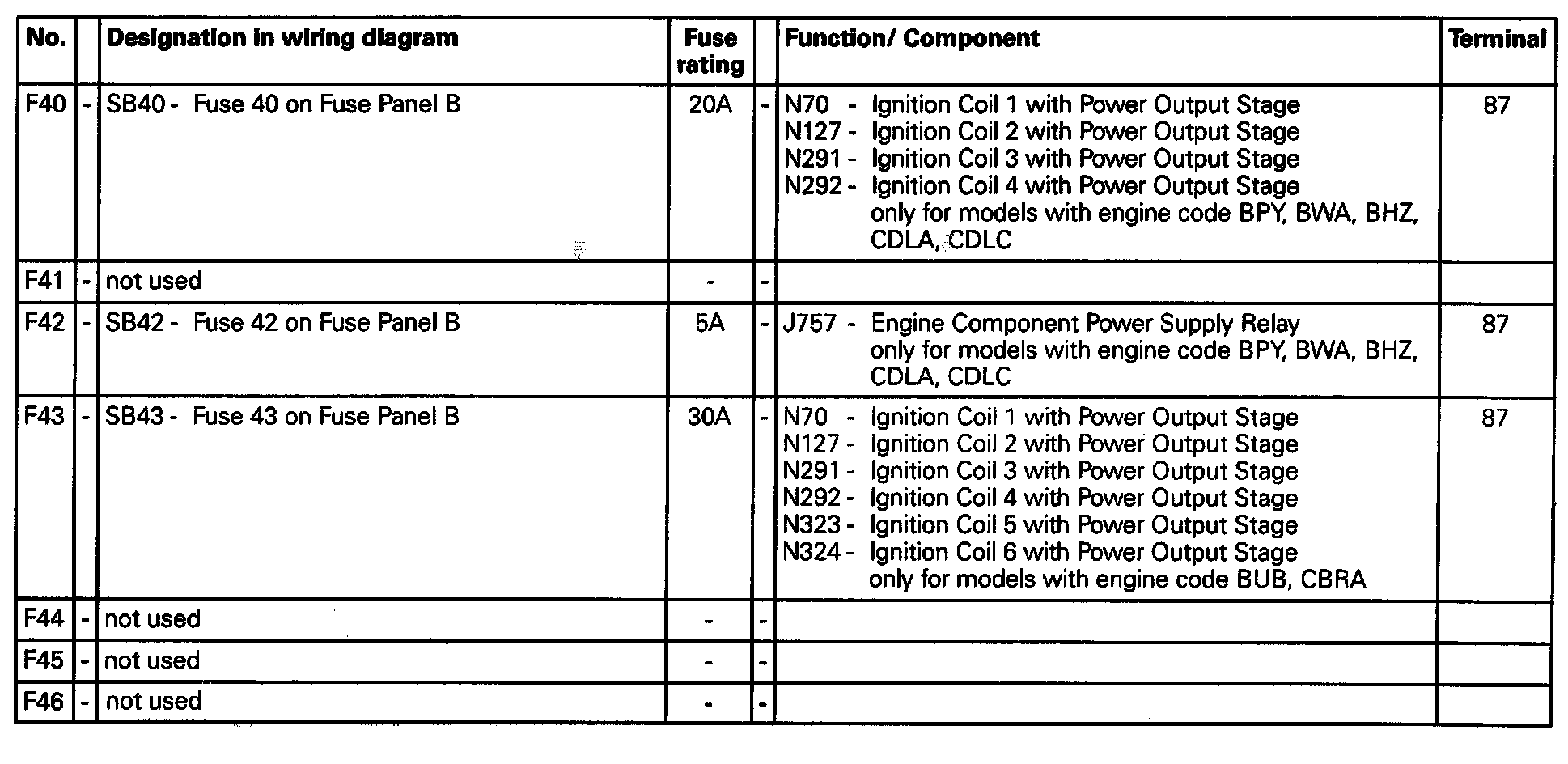

Fuses F40 - F46:
Fuses F47 - F52:

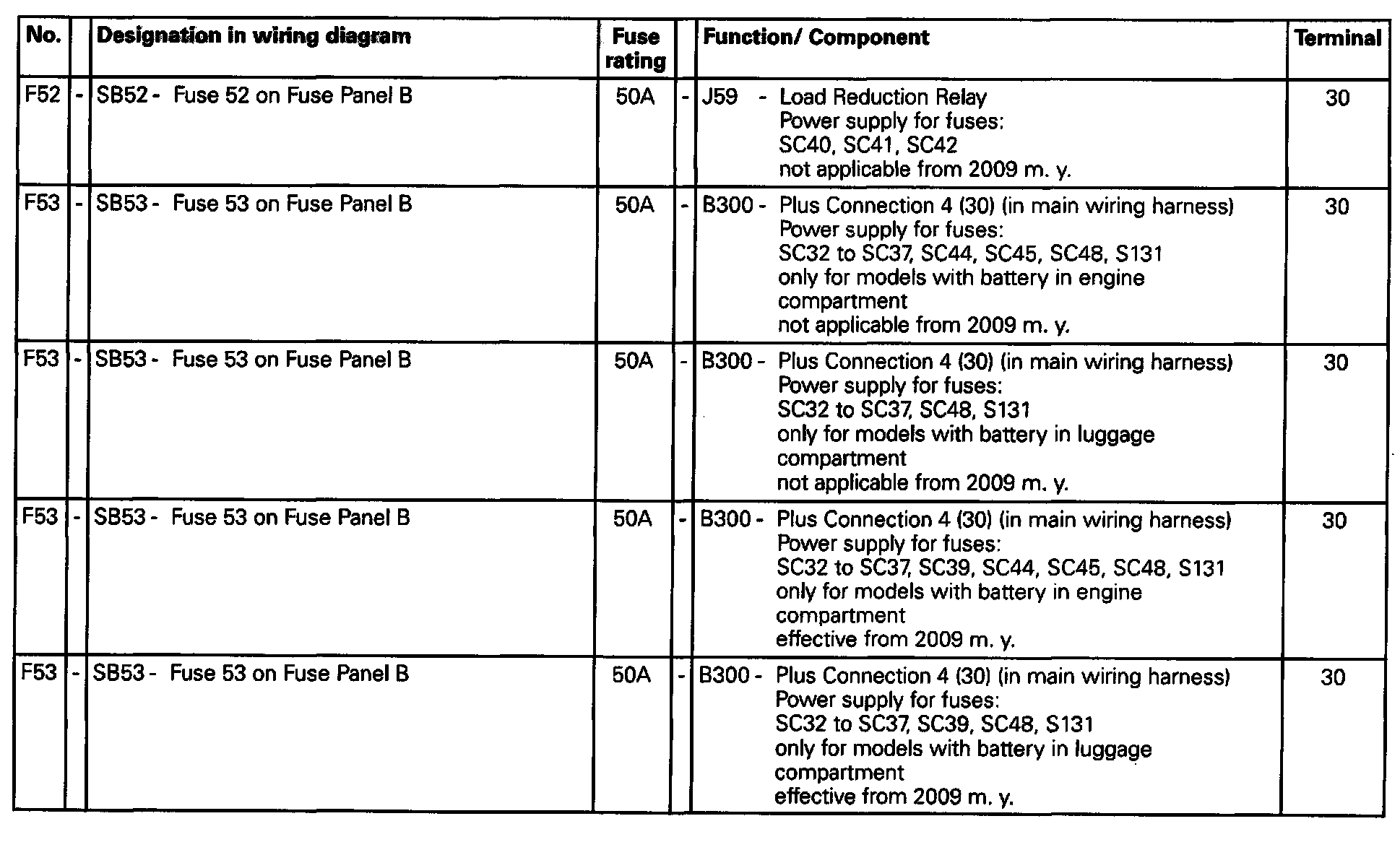

Fuses F52 - F53:
