Home >> Audi >> 2013 >> A3 (8PA) L4-2.0L DSL Turbo (CBEA) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Main Fuse Panel A -SA- on Electronics Box Low

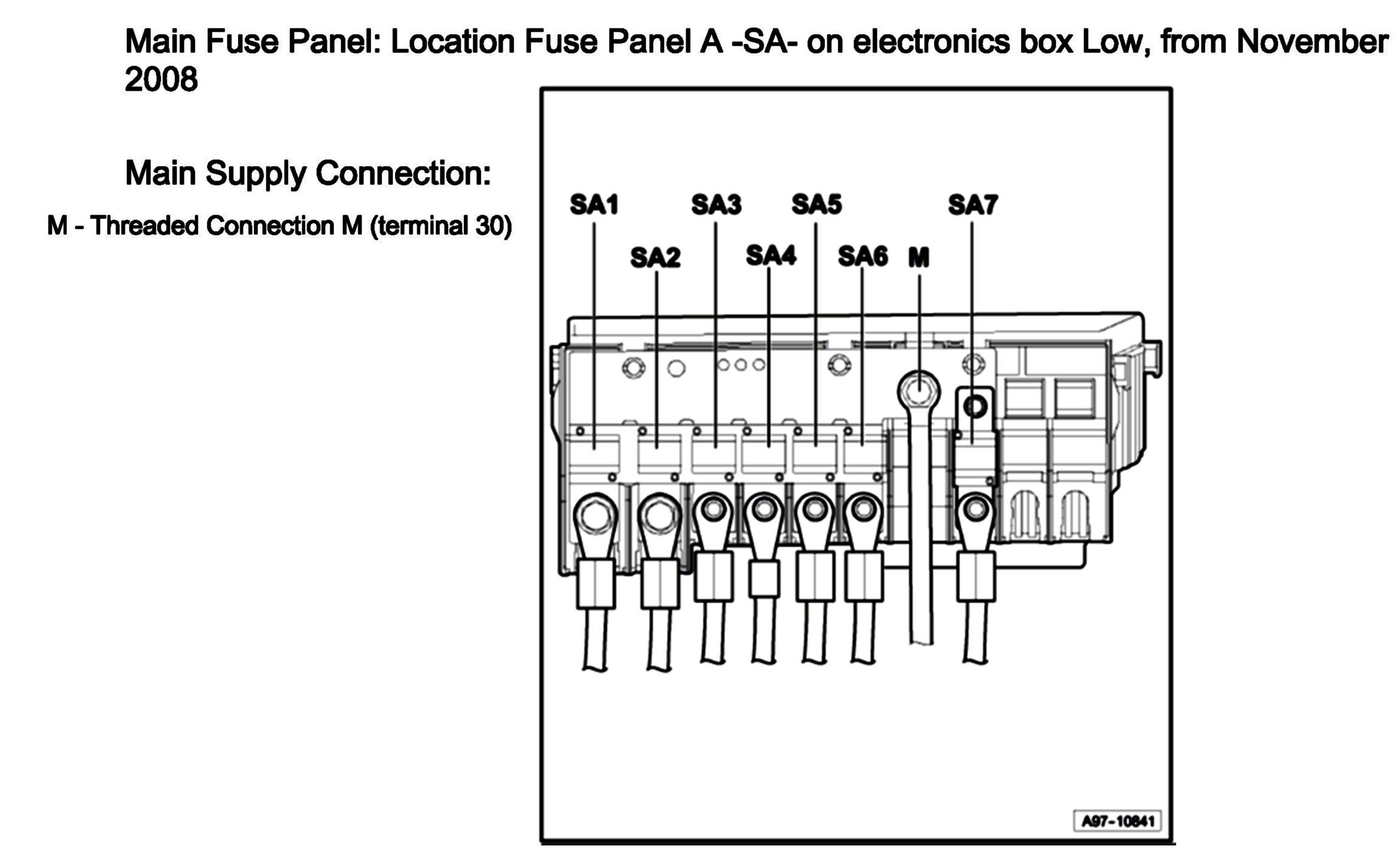

Main Fuse Panel A -SA- on Electronics Box Low



Fuse Arrangements Electronics Box Low, From November 2008
