Washer Fluid Line Hose Connections, Disconnecting and Connecting

Washer Fluid Line Hose Connections, Disconnecting and Connecting

Special tools, testers and auxiliary items required

• Hose Clamp Pliers (V.A.G 1275)

• Hose Clamp Pliers (V.A.G 1921)

Various hose couplings are used to connect the hoses to the washer fluid pumps and spray jets or as separating points.

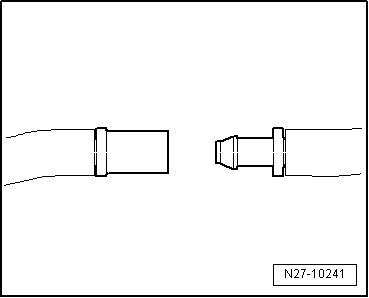

Unsecured Hose Coupling






- To disconnect the connection, pull both parts of the coupling apart.

- To connect, press both parts of the coupling together firmly until they noticeably engage.

Secured Hose Coupling With Circlip






- To disconnect the connection, turn the circlip - 1 - 90° - arrow - and remove the hose connector.

- To connect, attach the hose connector and turn circlip - 1 - - arrow - until it engages.

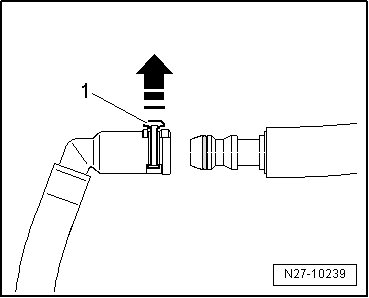

Secured Hose Coupling With Circlip, Version 1






- To disconnect the connection, pull circlip - 1 - up approximately 1 mm - arrow - and remove the hose connector.

- To connect, attach the hose connector and press the circlip in until it engages.

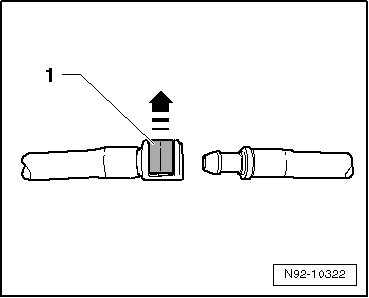

Secured Hose Coupling With Circlip, Version 2






- To disconnect the connection, pull circlip - 1 - up - arrow - and remove the hose connector.

- To connect, attach the hose connector and press the circlip in until it engages.

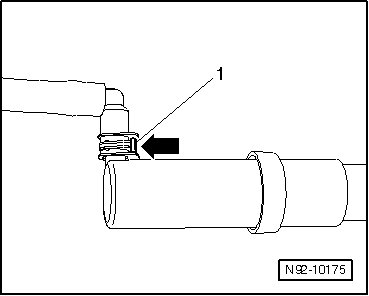

Headlamp Washer System Hose Connection With Circlip






- To disconnect the connection, press circlip - 1 - - arrow - and remove the hose connector.

- To connect, hold the circlip pressed - arrow - and attach the hose connector.

- Make sure the connection is engaged securely by pulling on the hose without pressing the circlip.

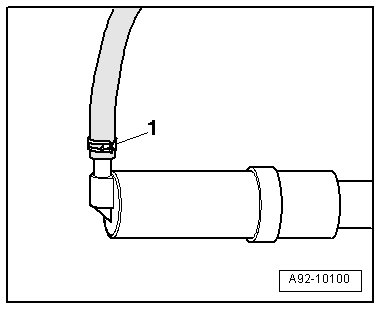

Headlamp Washer System Hose Coupling With Clamp






- To disconnect the hose clamp connection - 1 -, cut with side cutting pliers and remove the hose connector.

- To connect, slide the new hose clamp onto the hose, attach the hose connector and install the hose clamp with (V.A.G 1275).

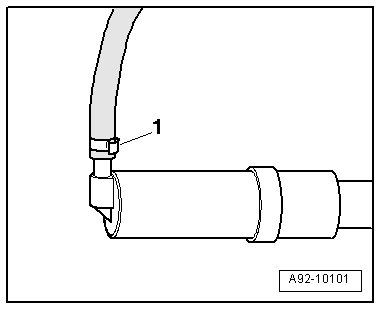

Headlamp Washer System Hose Coupling With Spring Clamp






- To disconnect the connection, open spring clamp - 1 - with (V.A.G 1921) and remove the hose connector.

- To connect, open the spring clamp with (V.A.G 1921) and attach the connector.
