DSG Transmission Gear Oil Overview






DSG Transmission Gear Oil Overview

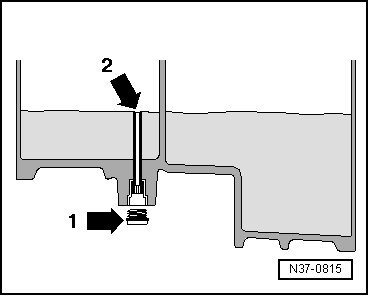

Gear oil inspection plug





Inspection plug - arrow 1 -

• 45 Nm

• Seal, replacing

Overflow tube - arrow 2 -

• 3 Nm
