Procedures

Ball Joint, Checking

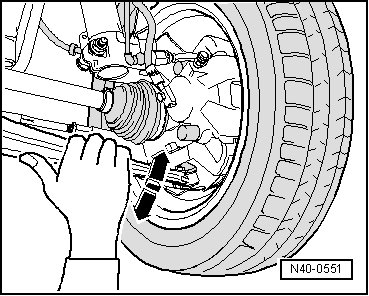

Axial Play, Checking






- Pull transverse link down and press up again.

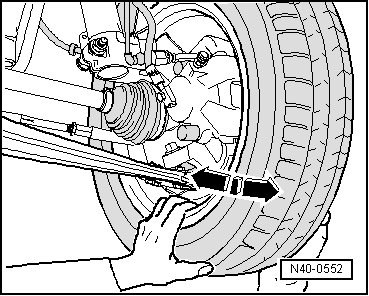

Radial Clearance, Checking






- Press wheel firmly in and out at bottom.

• Observe lower ball joint while performing checks.

• There should not be any noticeable or visible "play" in either of the two checks.

• Make allowance for any wheel bearing play or "play" in strut mounting at top.

• Check rubber boot for damage, replace lower ball joint, if necessary.
