Steering Wheel With Airbag Overview

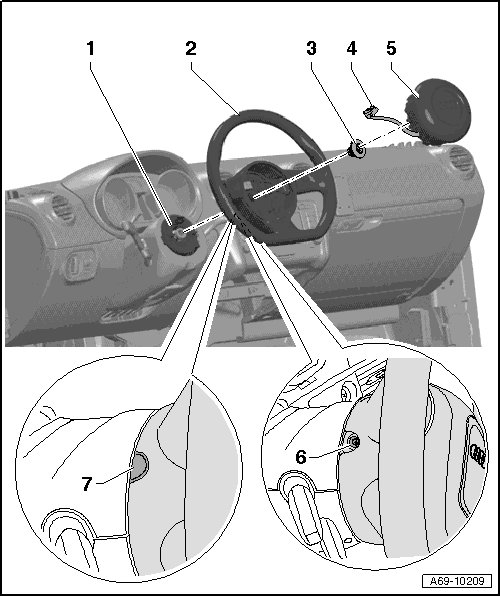

Steering Wheel with Airbag Overview






1 Airbag Spiral Spring/Return Spring with Slip Ring (F138)

• Removing and Installing, refer to "Steering Column Switch Module" in

2 Airbag Steering Wheel

• Removing and Installing, refer to => [ Steering Wheel with Airbag ] Steering Wheel with Airbag

• Various Versions

• Allocation, refer to the parts catalog.

3 Bolt

• 50 Nm

• Always replace if removed.

4 Harness Connector

• For airbag spiral spring/return spring with slip ring (F138)

• Replace "Driver Side Airbag, Servicing" in Removal and Installation

5 Airbag Unit

• With driver's airbag igniter (N95) and driver's airbag igniter 2 (N250)

Follow safety precautions when working on airbag. Refer to General Information.

• Removing and Installing, refer to "Driver Side Airbag, Servicing" in Removal and Installation

6 Bolt

• Tightening Specifications: "Driver Side Airbag, Servicing" in Description and Operation

7 Sealing Cap

• Quantity: 2

• For the airbag unit securing screw
