3.2L DSG

Starter

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Contact Corrosion.

Removing






- With ignition switched off, disconnect battery Ground (ND) wire. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

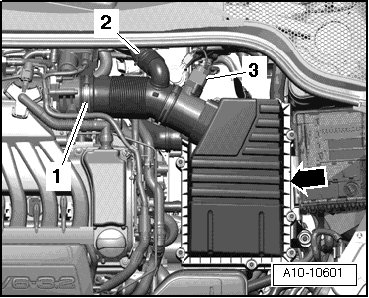

- Remove resonance tube - 2 - from air guide hose.

- Remove air guide hose - 1 - from Throttle Valve Control Module (J338).

- Disconnect Mass Air Flow (MAF) Sensor (G70) electrical connector - 3 -.

- Remove upper part of air filter housing - arrow - and remove air filter insert.

- Remove bolts - arrows - and remove air duct.






- Remove lower part of air filter housing - arrows -.






- Cut cable tie - arrow - for protective boot - 1 -.






- Disconnect the electrical connector - 2 -.

- Fold protective boot back and remove B+ wire from starter solenoid switch.

- Remove ground wire - 3 -.

Risk of destroying control module (mechatronic) with static discharge.

• Do not touch contacts in transmission connector with hands.

- To discharge static, touch vehicle ground with hand (while not wearing gloves).

- Disconnect electrical connector - 4 - on transmission by turning twist lock counterclockwise.

- Remove lower starter bolt (accessible from above).

- Remove upper starter bolt and remove starter.

Installing

• Tightening specifications. Refer to => [ Starter Overview ] Service and Repair.

Install in reverse order of removal. Note the following:

- Install bracket for upper and lower parts of air filter.

- Connect battery. Refer to => [ Connecting ] Battery, Disconnecting and Connecting.
