2.0L Manual Transmission

Starter

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Contact Corrosion.

Removing






- With ignition switched off, disconnect battery Ground (ND) wire. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

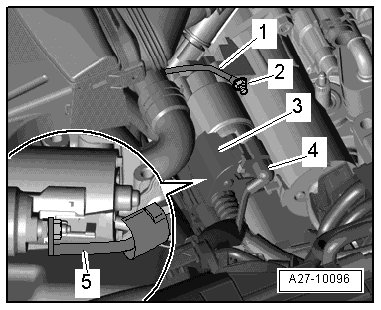

- Disconnect electrical connector - 4 -.

- Fold back the boot - 3 - and disconnect the B+ wire - 5 - from the solenoid switch.

- Remove ground wire - 2 -.

- Remove upper starter bolt - 1 -.

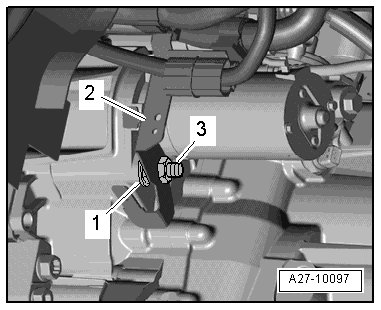

- Remove nut - 3 - on lower starter bolt and remove wiring harness bracket - 2 -.






- Remove lower starter bolt - 1 - (accessible from above) and remove starter.

Installing

• Tightening specifications. Refer to => [ Starter Overview ] Service and Repair.

Install in reverse order of removal. Note the following:

- Connect battery. Refer to => [ Connecting ] Battery, Disconnecting and Connecting.
