Fuse Panel In Right Luggage Compartment

Fuse Panel In Right Luggage Compartment

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Removing






- With ignition switched off, disconnect battery Ground (ND) wire. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove luggage compartment right side trim.

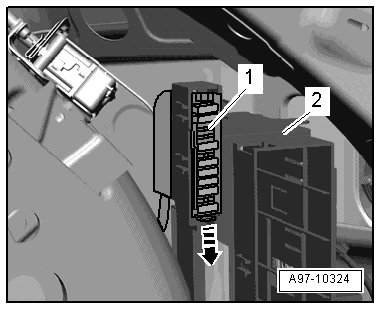

- Release retaining clip - arrow - and press fuse panel - 1 - back out of control module bracket - 2 -.

- Remove the fuses from the fuse panel.






- Release retaining clips - arrows - and remove the cover from the fuse panel.

- Pull off retaining strip - 1 - for harness connectors - arrow - and remove harness connectors from connector socket.






• For exact assignment of fuse panel in right luggage compartment, refer to current wiring diagram.

Installing

Install in reverse order of removal. Note the following:

- Install luggage compartment right side trim.

- Connect battery. Refer to => [ Connecting ] Battery, Disconnecting and Connecting.
