Carbon Brush, Checking, Bosch Generators From 2001

Carbon Brush, Checking, Bosch Generators from 2001

Procedure






- Remove the voltage regulator, refer to one of the following:

Through MY 07, refer to=> [ Voltage Regulator, Bosch Generator, from 2001 ] Voltage Regulator, Bosch Generator, From 2001.

From MY 07, refer to=> [ Voltage Regulator, Bosch Generator, from 2007 ] Voltage Regulator, Bosch Generator, From 2007.

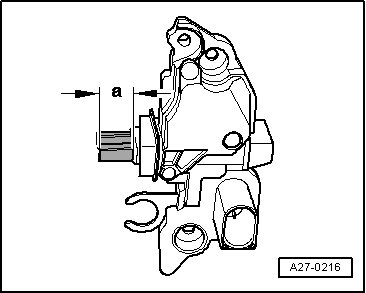

- Check carbon brushes for length - a -.

• Wear limit: - a - = 5 mm.

- Install the voltage regulator, refer to one of the following:

Through MY 07, refer to=> [ Voltage Regulator, Bosch Generator, from 2001 ] Voltage Regulator, Bosch Generator, From 2001.

From MY 07, refer to=> [ Voltage Regulator, Bosch Generator, from 2007 ] Voltage Regulator, Bosch Generator, From 2007.
