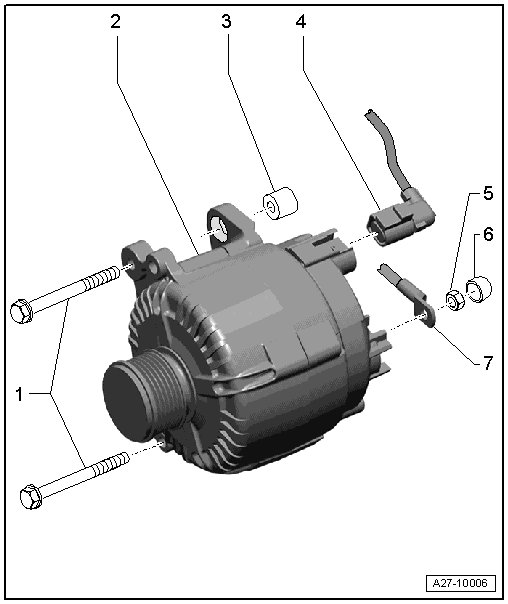

Generator Overview

Generator Overview






1 Screw

• 23 Nm

2 Generator

• Removing and installing:

• Audi TT and TTS with a 2.0L TFSI engine, refer to => [ Generator ] Generator.

• Audi TTRS with a 2.5L TFSI engine, refer to => [ Generator ] Generator.

• Audi TT with a 3.2L MPI engine, refer to => [ Generator ] Generator.

3 Bushing

• Because the clamping force of a tight socket is too low despite the correct torque, loosen sockets.

4 Electrical Connector

5 Nut

• 15 Nm

6 Cap

7 Terminal 30/B+
