Home >> Audi >> 2012 >> TTS Quattro Coupe (8J3) L4-2.0L Turbo (CDMA) >> Repair and Diagnosis >> Specifications >> Pressure, Vacuum and Temperature Specifications >> Compression Check

Compression Check

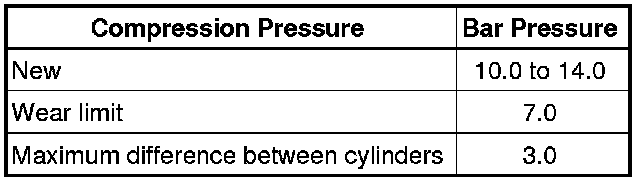

Compression Pressure:
Engine oil temperature at least 30 °C (86 °F)
Battery voltage at least 12.5 V
