Cylinder Head, Valvetrain - Fastener Tightening Specifications

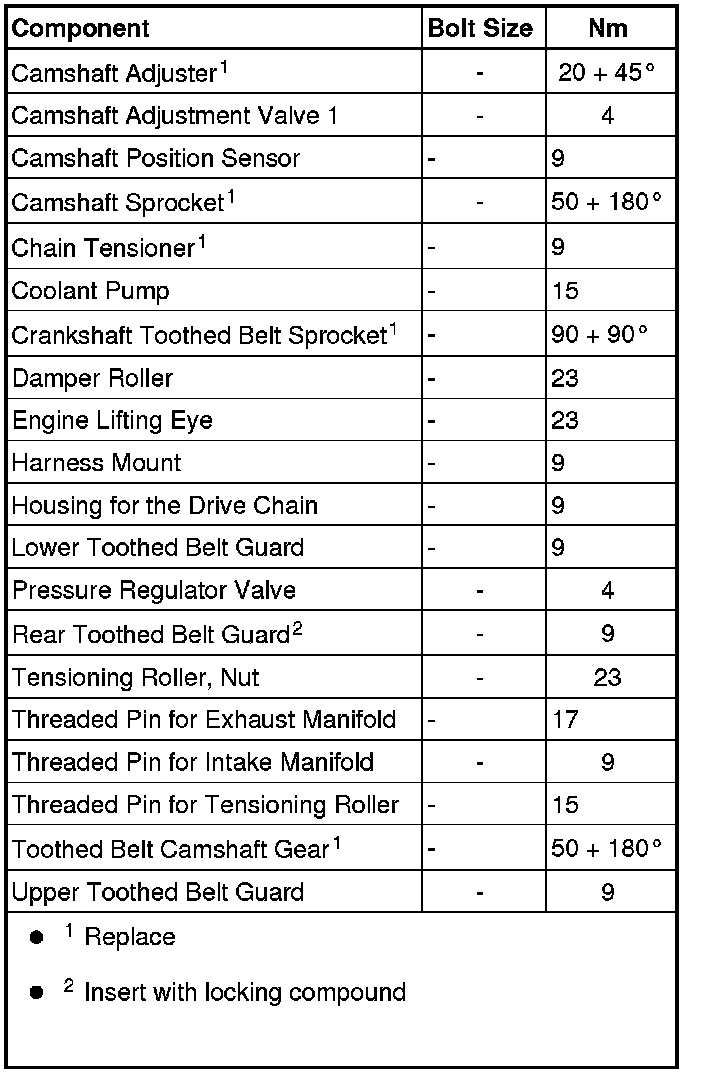

Fastener Tightening Specifications

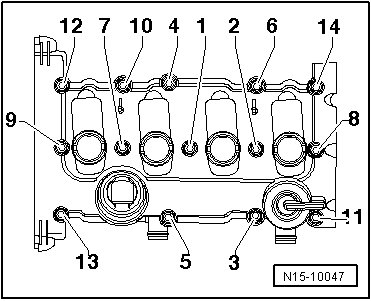

Cylinder Head Cover, Tightening Specifications and Sequence

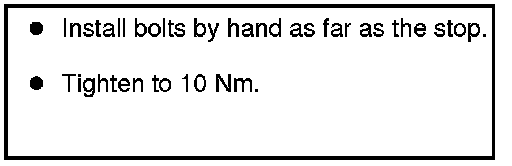

- Tighten the bolts in the following sequence: - 1 to 14 - in 2 steps:











Cylinder Head, Tightening Specifications and Sequence

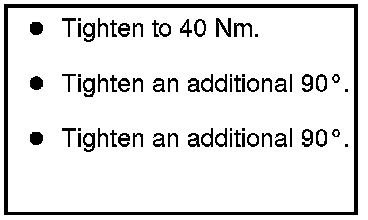

- Tighten bolts in 3 stages in - 1 to 10 - sequence as follows:











Guide Frame Tightening Specifications and Sequence






- Replace the guide frame bolts.

- Tighten bolts in 3 stages in - 1 to 6 - sequence as follows:

- Install bolts by hand as far as stop.

• The guide frame must be in contact with the entire contact surface of the cylinder head.

- Tighten to 8 Nm.

- Tighten an additional 90°.
