Window Regulator Switch Mount

Window Regulator Switch Mount

Removing






• Removing and installing is identical for the left and right sides.

- Remove armrest. Refer to => [ Armrest ] Armrest.

- Remove the window regulator switch.

- Carefully release retaining hooks - arrows - with a small screwdriver.

- Press switch mount - 1 - up out of armrest.

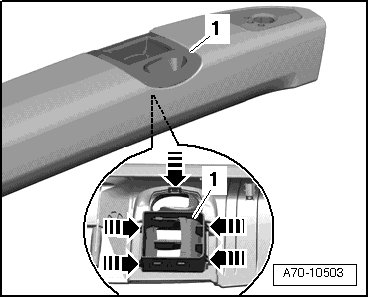

• The switch mount on the driver side is shown in the illustration.

Installation

Install in reverse order of removal. Note the following:

- Press switch mount into armrest until retaining hooks engage audibly.
