Front Door Lamps and Switches

Window Regulator Switches (E512)/(E107)

Removing

- Switch off ignition and remove ignition key.

- Remove front door trim.

- Remove armrest. Refer to Door Trim.

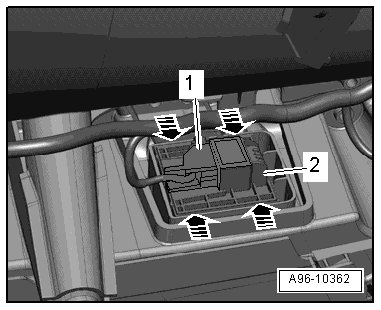

- Disconnect electrical connector - 1 -.






- Carefully release retaining hooks - arrows - using a small screwdriver.

- Press window regulator switch - 2 - out of switch mount.

Installing

Install in reverse order of removal. Note the following:

- Press window regulator switch into switch mount until fasteners engage.

- Install front door trim.
