Seat Position Sensor: Description and Operation

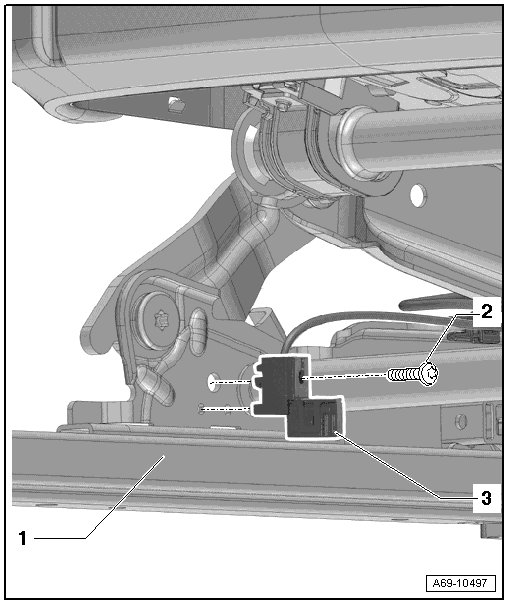

Seat Position Sensor Assembly Overview

• The seat position sensor is the same in all seat versions.






1 Seat pan lower frame

2 Bolt

• 1.3 Nm

3 Driver seat position sensor (G553)

• Installed depending on the date of manufacture

• Removing and Installing, refer to => [ Seat Position Sensor ] Seat Position Sensor
