Side Airbag Crash Sensor

Side Airbag Crash Sensor

Removing

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and Testing Procedures ] Service Precautions.

• Follow the safety precautions for front side airbag crash sensors (pressure sensors). Refer to => [ Front Side Airbag Crash Sensors Safety Precautions ] Front Side Airbag Crash Sensors Safety Precautions.

- Clamp off ground wire at battery with ignition switched off.

- Remove the door trim panel. Refer to => [ Door Trim ] Door Trim.

• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

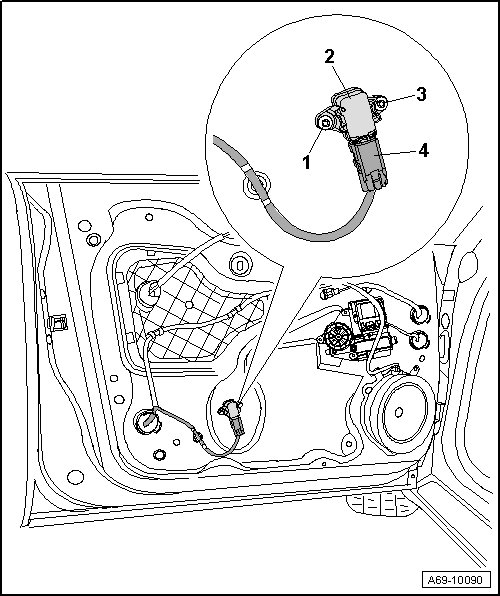

- Disconnect electrical connector - 4 - on side airbag crash sensor.






- Remove bolts - 1 - and - 3 - on side airbag crash sensor.

- Remove respective side airbag crash sensor - 2 -.

Installation

Install in reverse order of removal. Note the following:

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and Testing Procedures ] Service Precautions.

• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

• For proper crash sensor (pressure sensor) function, ensure door does not leak.

• All components (for example, cover, speaker, door trim) must be installed correctly.

• The door trim clips seal the system. Replace the clips, if necessary.

• Make sure the connectors are installed all the way in and are secure.

- Switch on ignition.

Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.

- Connect battery ground cable with ignition switched on.

• If the airbag malfunction indicator lamp (MIL) (K75) indicates a fault after installation, check the DTC memory, erase it and check it again.

For the correct tightening specifications; refer to => [ Crash Sensor Component Location Overview ] Crash Sensor For Airbags, Servicing.
