Glove Box Lamp Switch: Service and Repair

Glove Compartment Lamp Switch (E26)

Removing






- Switch off ignition and remove ignition key.

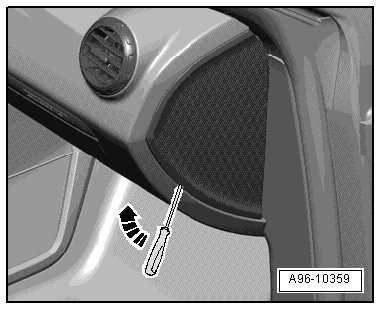

- Pry side instrument panel cover out with a screwdriver - arrow -.

- If present, remove Telephone Amplifier (R86).

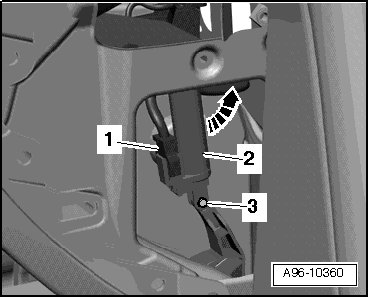

- Disconnect electrical connector - 1 -.






- Remove hinge pin - 3 -.

- Release switch - 2 - counterclockwise - arrow - and remove.

Installing

Install in reverse order.
