Combination Switch: Service and Repair

Turn Signal Switch (E2), Cruise Control Switch (E45)

Removing






- Remove Steering Angle Sensor (G85). Refer to => [ Steering Angle Sensor (G85) ] Steering Angle Sensor (G85).

• To provide a better illustration, the following steps are shown with the steering column switch module removed.

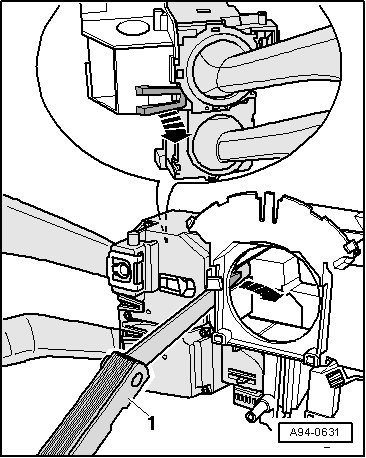

- Release retaining clips with 1.0 mm feeler gauge - item 1 - - arrows - and remove left lever switch.

Installing

Install in reverse order of removal. Note the following:

- Make sure all fasteners and electrical connectors are properly engaged.
