Front Upper Body Outlet Temperature Sensors (G385)/(G386)

Front Upper Body Outlet Temperature Sensors (G385)/(G386)

Left Front Upper Body Outlet Temperature Sensor (G385) / Right Front Upper Body Outlet Temperature Sensor (G386)

• This temperature sensor is always installed on the driver's side. The Left Front Upper Body Outlet Temperature Sensor (G385) is installed in the air guide channel leading to the left instrument panel vent.

• On vehicles with heating (without A/C system), no upper body outlet temperature sensor is installed (depending on version, mounting opening in air guide channel is not present or is sealed with a sealing plug).

Removing

- Switch off ignition.

- Remove the driver side storage compartment.

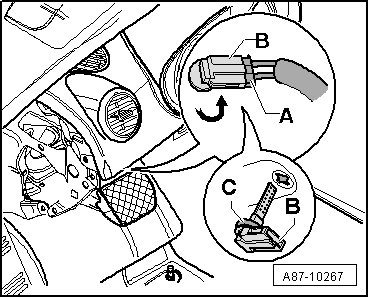

- Disconnect harness connector - A - from temperature sensor.






- Turn temperature sensor - B - approximately 90°.

- Remove temperature sensor - B - from air guide.

Installing

- Install in reverse order of removal.

- Check seal - C - for proper seating when installing.
