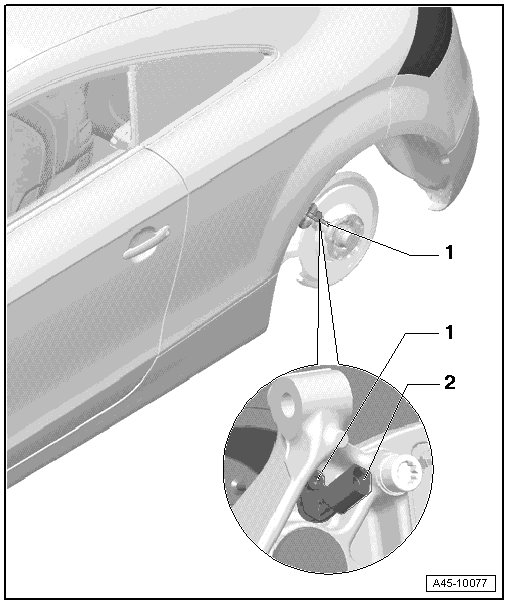

Rear ABS Wheel Speed Sensor Assembly Overview, FWD

Rear ABS Wheel Speed Sensor Assembly Overview, FWD

• The ABS sensor ring/rotor is installed in the respective wheel bearing unit and should not be replaced.






1 - Bolt

• 8 Nm

2 - Right Rear ABS Wheel Speed Sensor (G44) / Left Rear ABS Wheel Speed Sensor (G46)

• Removing and installing, refer to => [ Rear ABS Wheel Speed Sensor, FWD ] Rear ABS Wheel Speed Sensor, FWD.
