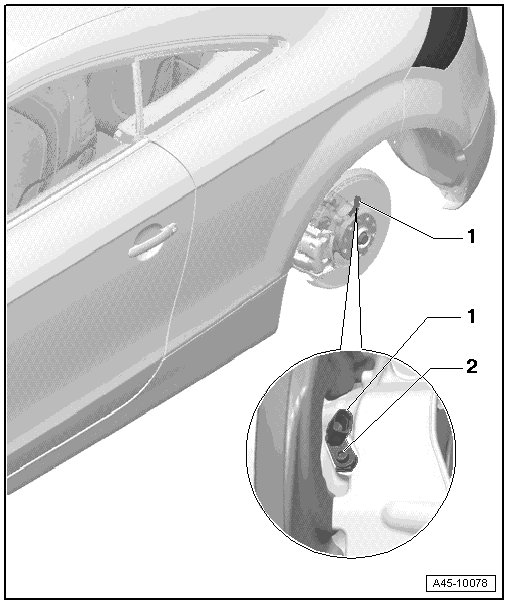

Rear ABS Wheel Speed Sensor Assembly Overview, AWD

Rear ABS Wheel Speed Sensor Assembly Overview, AWD

• The ABS sensor ring/rotor is installed in the respective wheel bearing unit and should not be replaced.






1 - Right Rear ABS Wheel Speed Sensor (G44) / Left Rear ABS Wheel Speed Sensor (G46)

• Removing and installing, refer to => [ Rear ABS Wheel Speed Sensor, AWD ] Rear ABS Wheel Speed Sensor, AWD

2 - Bolt

• 8 Nm
