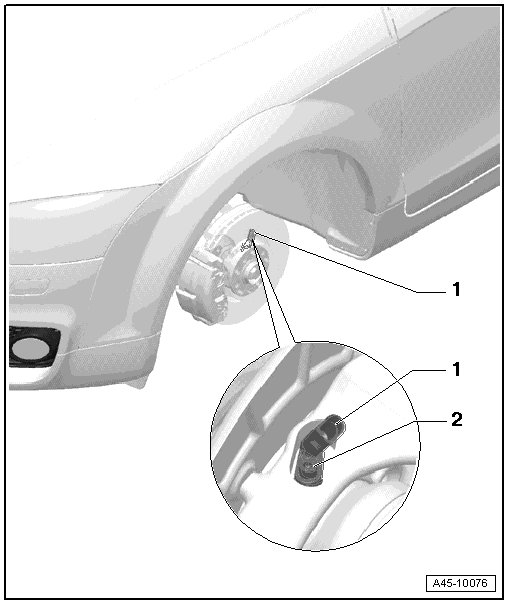

Front ABS Wheel Speed Sensor Assembly Overview

• The ABS sensor ring/rotor is installed in the respective wheel bearing unit and should not be replaced.






1 - Right Front ABS Wheel Speed Sensor (G45) / Left Front ABS Wheel Speed Sensor (G47)

• Removing and installing, refer to => [ Front ABS Wheel Speed Sensor ] Front ABS Wheel Speed Sensor.

2 - Bolt

• 8 Nm
