Tiptronic Switch

Tiptronic Switch

Removing

- Remove driver's airbag.

- Disconnect trim ring from steering wheel.

- Slide multi-function button - 2 - out of steering wheel in - direction of arrow -.





- Rotate multi-function button.

- Disconnect the connector - 2 - on the multifunction button - 1 -.

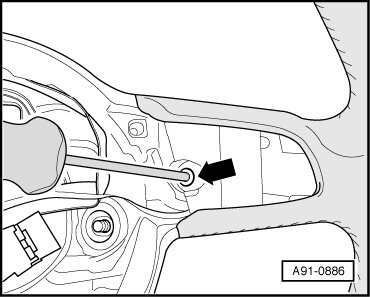

- Remove the bolts - arrow - (3 Nm) and the Tiptronic switch to the rear.





Installing

- Install in reverse order.

Removal and installation of the left switch is identical.
