Multi-Function Steering Wheel, Overview

Multi-Function Steering Wheel, Overview

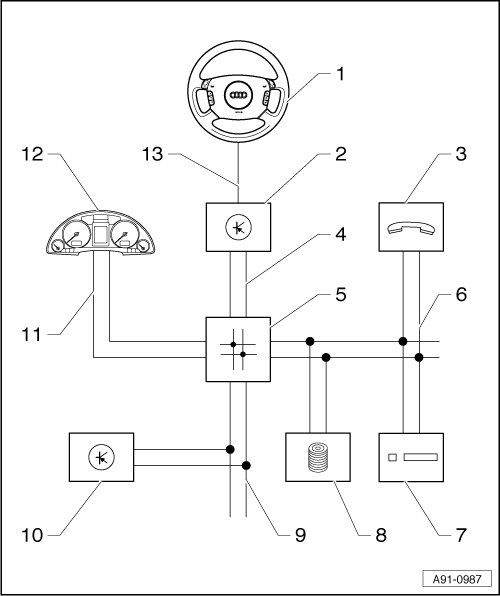

1 Multifunction Steering Wheel

• Multi-function buttons, removing and installing, refer to => [ Multi-function Buttons ] Multi-function Buttons

• Tiptronic Switch, removing and installing, refer to => [ Tiptronic Switch ] Tiptronic Switch

2 Steering Column Electronic Systems Control Module (J527)

• On steering column

• Connectors, refer to => [ Steering Column Electronic Systems Control Module Connectors ] Steering Column Electronic Systems Control Module Connectors

• Removing and installing, refer to => [ Steering Column Electronic Systems Control Module ] Steering Column Electronic Systems Control Module

3 Telephone transceiver (R36)

• In electronics box under left front seat

4 CAN-Bus (Comfort)

5 Data Bus On Board Diagnostic Interface (J533)

• behind left front compartment

6 CAN-Bus (Infotainment)

7 Radio (R)

• In the top of the center console

8 CD Changer (R41)

• In the glove compartment

9 CAN-Bus (Powertrain)

10 Engine Control Module (J623)

• In plenum chamber

11 CAN-Bus (Instrument Cluster)

12 Instrument Cluster Control Module (J285) (instrument cluster)

• In instrument panel

13 LIN Data Bus (Single Wire Bus)
