Rear Three-Point Seat Belt

Rear Three-Point Seat Belt

Removing

- Remove side trim. Refer to => [ Rear Side Trim ] Rear Side Trim.

- Remove subwoofer (optional equipment) on left side.

- Remove the rear outer belt end fitting. Refer to => [ Rear Outer Belt End Fitting ] Rear Outer Belt End Fitting.

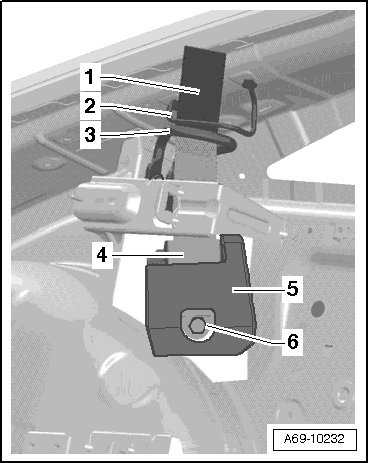

- Thread belt webbing - 1 - out of bracket - 2 - and belt relay - 3 -.






- Pull cover - 5 - down.

- Remove bolt - 6 - and remove three-point seat belt - 4 -.

Installation






Install in reverse order of removal. Note the following:

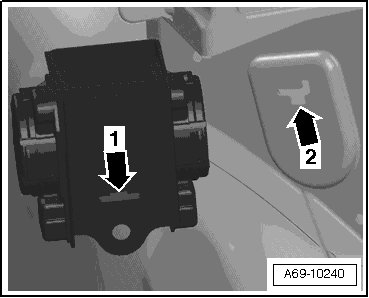

- Insert three-point seat belt with anti-twist mechanism - arrow 1 - in mount - arrow 2 -.

For the correct tightening specifications; refer to => [ Rear Three-Point Seat Belt Assembly Overview ] Rear Three-Point Seat Belt Assembly Overview.
