Rear Outer Belt End Fitting

Rear Outer Belt End Fitting

Removing

- Remove side trim. Refer to => [ Rear Side Trim ] Rear Side Trim.

- Remove subwoofer (optional equipment) on left side.

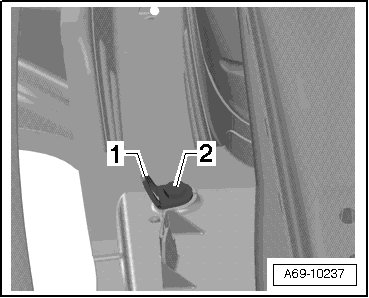

- Remove bolt - 2 - from belt anchor - 1 -.






Installation

Install in reverse order of removal. Note the following:

- Position belt anchor with nut on floor assembly pins so end of belt webbing faces toward inner side of vehicle.

For the correct tightening specifications; refer to => [ Rear Three-Point Seat Belt Assembly Overview ] Rear Three-Point Seat Belt Assembly Overview.
