Belt Relay Anchorage Point

Belt Relay Anchorage Point

Removing






- Remove rear side trim. Refer to => [ Rear Side Trim Assembly Overview ] Rear Side Trim Assembly Overview.

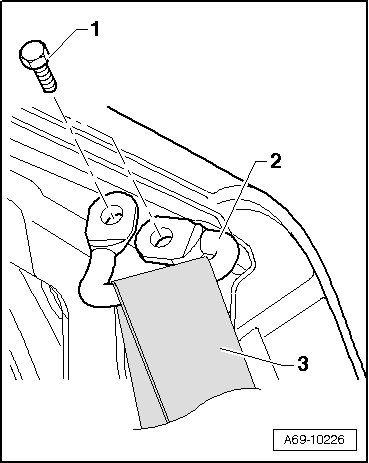

- Remove bolts - 1 - and remove belt relay - 2 -.

- Thread belt webbing - 3 - out of belt relay - 2 -.

Installation

Install in reverse order of removal.

For the correct tightening specifications; refer to => [ Front Three-Point Seat Belt Assembly Overview ] Front Three-Point Seat Belt Assembly Overview.
