Angled Bracket above Driver Knee Airbag

Angled Bracket above Driver Knee Airbag

Removing

- Move driver's seat all the way back and put backrest at a 45° angle.

- Remove knee bar (driver side instrument panel cover). Refer to => [ Driver Side Instrument Panel Cover ] Driver Side Instrument Panel Cover.

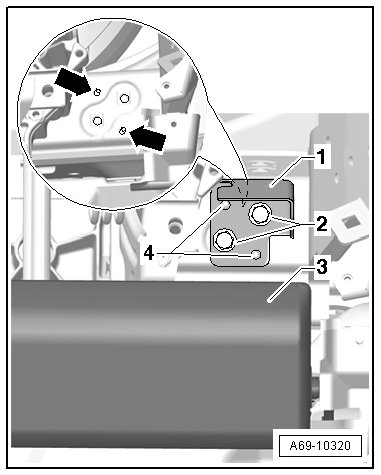

- Remove bolts - 2 - and remove angled bracket - 1 -.






• Be careful of knee airbag - 3 - when removing and installing angled bracket.

Installation

Install in reverse order of removal. Note the following:

- Insert angled bracket - 1 - with holes - 4 - in mounts - arrows - on central tube. Bend on angled bracket must face toward rear.

For the correct tightening specifications, refer to => [ Front Knee Airbags Overview ] Knee Airbag, Servicing
