Airbag Unit Harness Connector

Airbag Unit Harness Connector

Removing

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and Testing Procedures ] Service Precautions.

- Remove the driver airbag unit. Refer to => [ Driver Airbag Igniter N95 and Driver Airbag Igniter 2 N250 ] Driver Airbag Igniter N95 and Driver Airbag Igniter 2 N250.

• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

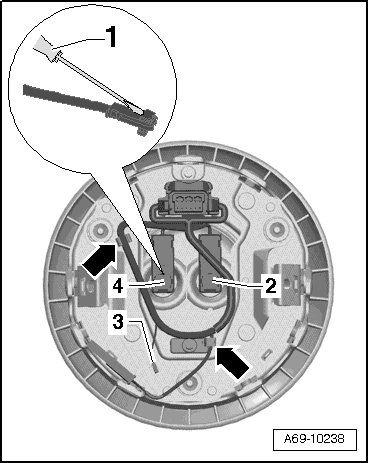

- Disconnect electrical connections - 2 - and - 4 - on airbag with screwdriver - 1 -.






- Remove connector - 3 -.

Installation

Install in reverse order of removal. Note the following:

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and Testing Procedures ] Service Precautions.

• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

• Make sure the connectors are installed all the way in and are secure.

- Install the driver airbag unit. Refer to => [ Installation ] Driver Airbag Igniter N95 and Driver Airbag Igniter 2 N250.
