Front Passenger Airbag Passenger Occupant Detection System, Servicing

Front Passenger Airbag Deactivation Passenger Occupant Detection System Assembly Overview

• Follow the additional safety precautions for working on the passenger airbag deactivation passenger occupant detection system. Refer to => [ Passive Occupant Detection Sensor Additional Safety Precautions ] Passive Occupant Detection Sensor Additional Safety Precautions.

• Follow the procedure for the passenger airbag deactivation passenger occupant detection system after a crash. Refer to => [ Passenger Occupant Detection System, Procedure after an Accident ] Passenger Occupant Detection System, Procedure After an Accident.

• The replacement part (service kit) for the passenger occupant detection system (for specific countries) is already precalibrated and must not be separated under any circumstances. Refer to => [ Passive Occupant Detection System ] Front Passenger Passenger Occupant Detection System, Servicing.

The passenger occupant detection system service kit is precalibrated and must not be disconnected. The service kit consists of:

• Seat Occupied Recognition Control Module (J706)

• Seat Occupied Recognition Pressure Sensor (G452)

• Passive Occupant Detection System Mat

• Seat cushion

• Wiring harness between the seat occupied recognition control module (J706) and the seat occupied recognition pressure sensor (G452).

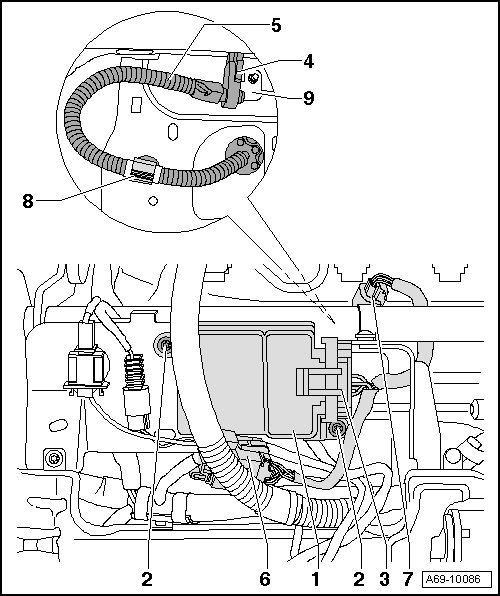

1 Seat Occupied Recognition Control Module (J706)

• Must not be disconnected and replaced separately under any circumstances

• Replacing is only possible with the entire service kit => [ Passive Occupant Detection System ] Front Passenger Passenger Occupant Detection System, Servicing

2 Bolt

• 2.5 Nm

• Quantity: 2

3 Connector on Seat Occupied Recognition Control Module (J706)

• Must not be separated under any circumstances.

4 Seat Occupied Recognition Pressure Sensor (G452)

• Must not be disconnected and replaced separately under any circumstances

• Replacing is only possible with the entire service kit => [ Passive Occupant Detection System ] Front Passenger Passenger Occupant Detection System, Servicing

5 Pressure hose

6 Connector between service kit and seat wiring harness

7 Connector on Seat Occupied Recognition Pressure Sensor (G452)

• Must not be separated under any circumstances.

8 Guide clip

9 Retaining bracket
