Tire Pressure Module: Locations







Control Modules

Tire Pressure Monitoring Control Module 2 -J793-

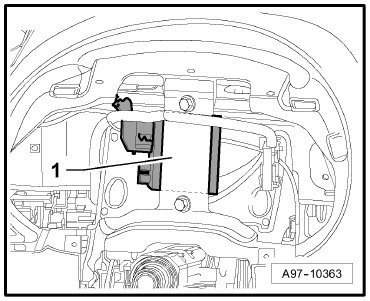

Component Location:
Behind instrument cluster -1-.

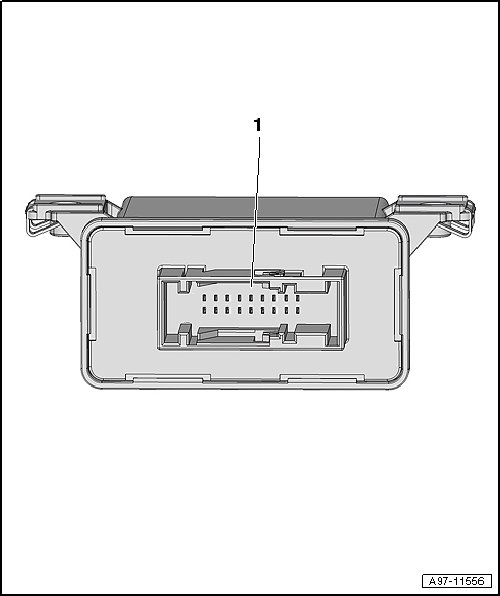

Pin Arrangements





1 18-Pin Connector -T18c- , black
