Electronic Brake Control Module: Locations
Control Modules
ABS Control Module -J104-
Component Location:
On firewall right, in engine compartment -1-

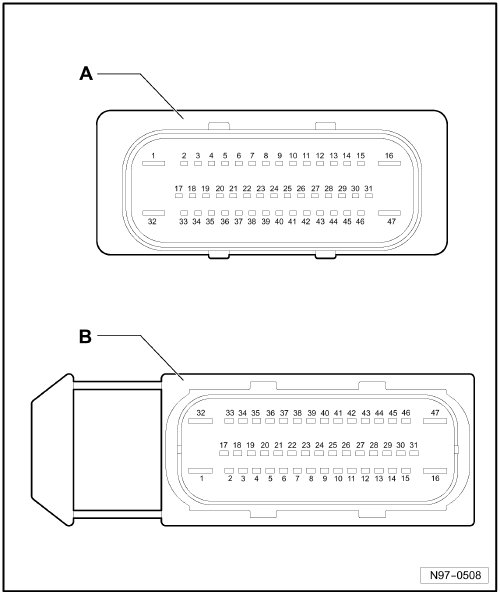

Pin Arrangements
A - ABS Control Module -J104-
B - 47-Pin Connector -T47- , on wiring harness, black
