Antenna Control Module: Service and Repair

Antenna Selection Control Module

The antenna selection control module is located in the front of the luggage compartment on the bottom of the compartment partition.

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove the luggage compartment floor covering.

- Remove foam insert.

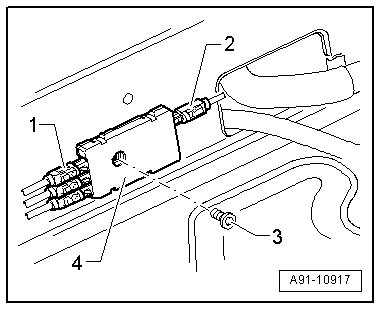

- Remove bolt - 3 - on antenna selection control module - 4 -.





- Disconnect connectors - 1 - and - 2 - on antenna selection control module - 4 - and remove control module.

Installing

- Install in reverse order.

Tightening specifications. Refer to => [ Antenna System Assembly Overview ] Antenna System Assembly Overview.
