Ignition Switch: Diagrams

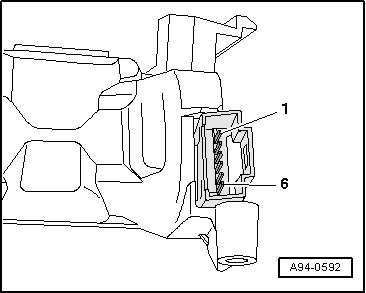

Ignition Switch (D) Connector Assignment

1. Terminal 50

2. Terminal 30

3. S terminal

4. X terminal

5. Terminal P

6. Terminal 15
